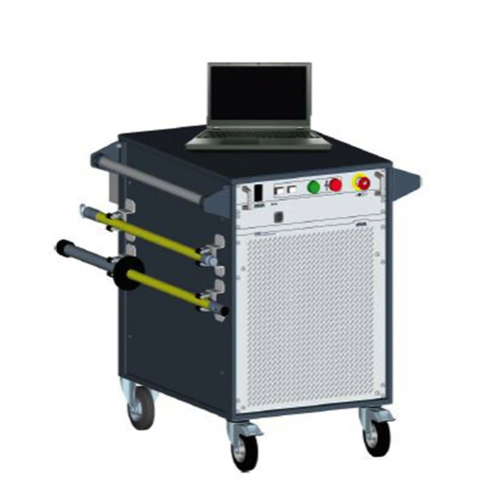

BAUR PHG 80 VLF Test System (1.4 – 80.6 kVpeak)
Manufacturer: BAUR Model: PHG 80 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Output voltage
Frequency range: 0.01 – 1 Hz
VLF truesinus®: 1 – 38 kVrms, 1.4 – 53.7 kVpeak
VLF square wave voltage: 1 – 80 kV
DC voltage: 0 to ±80 kV
Max. capacitive load:
Up to 20 μF
1.2 µF @ 0.1 Hz @ 57 kVrms
3 µF @ 0.1 Hz @ 38 kVrms
4 µF @ 0.1 Hz @ 30 kVrms
Resolution: 0.1 kV
Accuracy: 1%
Output current
Measurement range: 0 – 200 mA
Output current:
1.8 mA @ 80 kV
60 mA @ 50 kV
90 mA @ 20 kV
Max. burn current: 120 mA
Resolution: 10 μA
Accuracy: 1%
General
Power supply: 200 – 260 V, 50/60 Hz
Option: 100 – 140 V, 50/60 Hz (with auto transformer)
Max. power consumption: 3,500 VA
Reverse voltage protected: Up to 16 kV
Degree of protection: IP22
Dimensions HV generator
(W x H x D) approx. 755 x 850 x 991 mm (19", 15 RU)
Weight HV generator: Approx. 199 kg, incl. rack and connection cable
Ambient temperature (HV generator): -20°C to +55°C (from 45°C with reduction in performance)
Storage temperature (HV generator): -30°C to +70°C
Relative humidity: Non-condensing
Safety and EMC
CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
BAUR Software 4
Details about the BAUR Software 4 and the system requirements can be found in the data sheet for the BAUR Software 4.
Dissipation factor measurement
VLF truesinus®: 1 – 57 kVrms
Load range: ≥10 nF
Measurement range: 0.1 x 10^-3 – 1,000 x 10^-3
Accuracy: 1 x 10^-4
Resolution: 1 x 10^-6 (mean value of the dissipation factor)
Detection and compensation of leakage currents: automatic
Standard delivery
PHG 70 portable VLF test system:
▪ PHG 70 or PHG 80 HV generator
▪ SCU safety control unit
▪ Laptop incl.
– pre-installed Windows operating system
– pre-installed BAUR Software 4 (cable testing)
– Carrying bag
▪ GDR 80-500 discharge and earth rod
▪ 19” rack for PHG 70 portable or PHG 80 portable incl.
HV connection cable, earth cable and mains supply cord,
cable lengths of 10 m respectively
▪ Set of 4 wheels for 19” rack, mounted
▪ Carry handle, 2 pcs
▪ User manual
