BAUR Syscompact 400 portable Simple And Safe Measurement (220 – 230 V, 50/60 Hz)
Manufacturer: BAUR Model: Syscompact 400 portable - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
System:
Power supply: 220 – 230 V, 50/60 Hz
Options:
110 – 120 V, 50/60 Hz (with external auto transformer)
240 V, 50/60 Hz (with conversion kit for mains supply)
Ambient temperature (operational): -10°C to +50°C
Storage temperature: -20°C to +60°C
Dimensions (W x H x D):
With carrying handles (basic version): Approx. 745 x 815 x 750 mm
With heavy duty wheels: Approx. 775 x 1,185 x 935 mm
Weight: From 140 kg (depending upon equipment)
Degree of protection: IP22
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

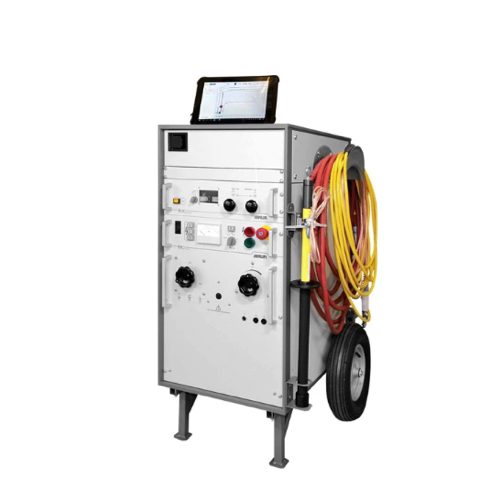

Control of the IRG 400 via tablet or laptop (The figure is illustrative)
IRG 400 time domain reflectometer:
Measurement methods:
TDR Time Domain Reflectometry: 1- and 3-phase measurement
Step TDR: 1- and 3-phase measurement
SIM/MIM secondary/multiple impulse method
ICM impulse current method
Option: Decay method
Pulse voltage: 60 V
Pulse width: 30 ns – 10 µs
Voltage-proof up to 400 V, 50/60 Hz
Measurement category: CAT IV/600 V (Up to CAT IV/600 V in combination with the optional TDR connection cable)
Output impedance: 30 ohm – 2 kOhm
Input signal gain Dynamic range: 101 dB (-63 to +38 dB)
Display range: 10 m – 1000 km
Accuracy: 0.1% (relating to the measurement result)
Data rate: 400 MHz
Resolution: 0.1 m (at v/2 = 80 m/μs)
Velocity of propagation (v/2): 20 – 150 m/μs, adjustable
Control system:
Via tablet with BAUR BUI-F app
Via laptop with BAUR Software 4
Surge voltage generator:
Surge voltage ranges: 0 – 8 kV, 0 – 16 kV, 0 – 32 kV
Surge energy: 1,100 J
Option SSG 1500: 1,540 J
Option SSG 2100: 2,050 J
Surge sequence: 10 or 20 pulses/min, single surge
Option SSG 1500: 20 or 30 pulses/min, single surge
DC voltage: 0 – 32 kV
Max. output current (burn):
DC 560 mA (0 – 8 kV)
Option SSG 1500/SSG 2100: DC 850 mA (0 – 8 kV)
Standard delivery
▪ BAUR Syscompact 400 cable fault location system incl.
– IRG 400 time domain reflectometer
– SA 32 SIM/MIM coupling unit
– SSG 1100 surge voltage generator
– SK 1D inductive coupler for ICM
– 19” rack for Syscompact 400, height 21 RU (933.45 mm), depth
700 mm, incl. heavy duty wheels and handle
– 19” drawer for tablet or laptop
– HV connection cable, 10 m
– Earth cable, 10 m, with earth terminal
– Mains supply cord, 10 m
▪ Tablet with BAUR BUI-F app
or
Laptop with BAUR Software 4
▪ IRG connection cable, 3-phase, 10 m
▪ GR 40 earth rod
▪ User manual
