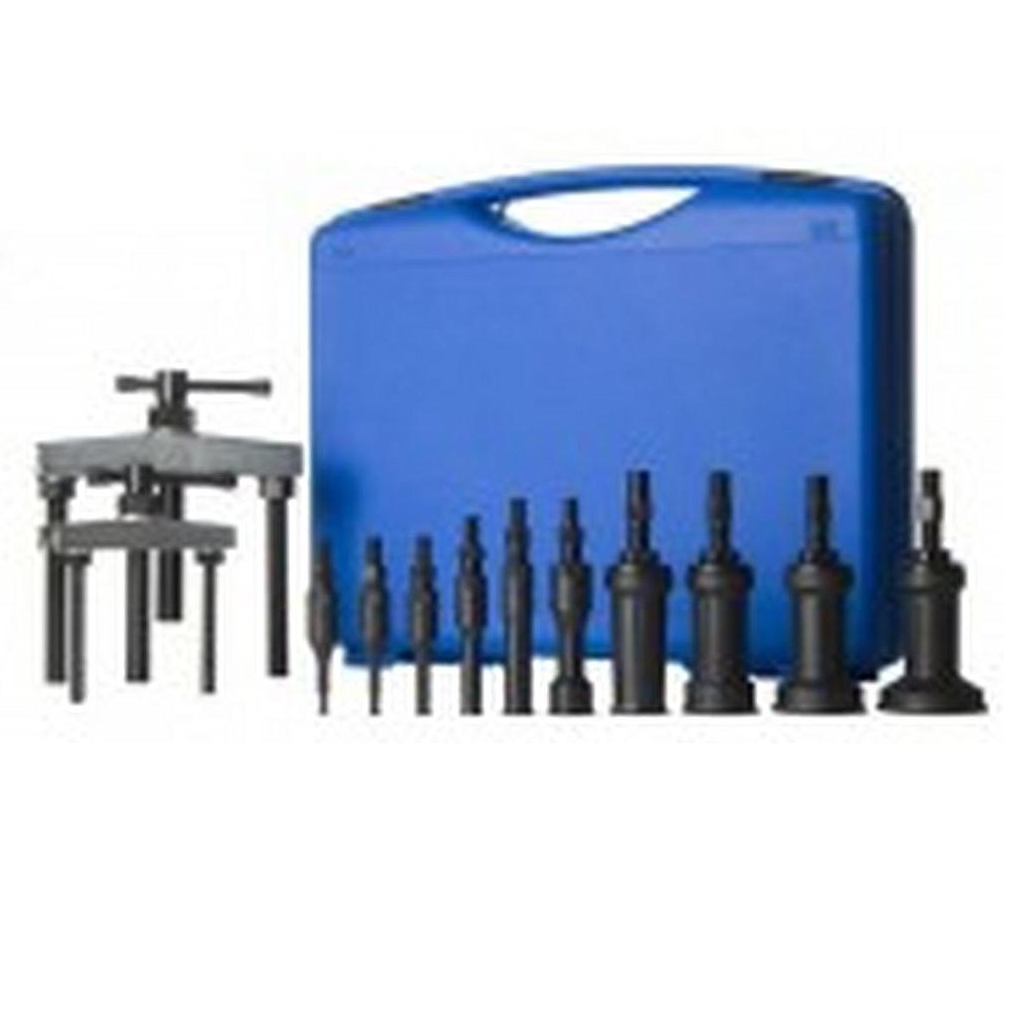

BEGA 62-105SET Internal expander-puller (5-95mm)
Manufacturer: BEGA Model: 62-105SET Origin: Netherlands - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
counter support type: 62-100
Expander: diameter
62-004: 4-7 mm (Max depth mm: 35)
62-007: 7-10 mm (Max depth mm: 35)
62-010: 10-14 mm (Max depth mm: 35)
62-014: 14-20 mm (Max depth mm: 45)
62-020: 20-30 mm (Max depth mm: 50)
62-030: 30-40 mm (Max depth mm: 90)
62-040: 40-50 mm (Max depth mm: 95)
62-050: 50-60 mm (Max depth mm: 95)
62-060: 60-70 mm (Max depth mm: 95)
62-070: 70-80 mm (Max depth Max mm: 95)
including free carrying case
Details
Download Cataloge Mechanical pullers
BETEX 62
Internal expander-puller up to a bore of Ø 150 mm
This special expander system has been developed to facilitate rapid and effective dismantling under difficult conditions, in blind holes.
The multiple adjustable jaws (up to 6) ensure the correct grip from behind the bearing, bush etc. Bearings, bushes, sealings etc. are extracted effortlessly.
Smaller, larger and longer sizes are available on request.
|
BETEX 62 is available in 3 sets
|
||||||
|
The two sets together come in a free carrying case
|
||||||
|
counter
|
suitable for
|
expander
|
for diameter
|
for max
|
|
|
|
support type
|
expanders
|
|
from-uptill mm
|
depth mm
|
|
|
|
62-100
|
62-004 -
|
62-004
|
4-7
|
35
|
*
|
****
|
|
|
62-030
|
62-007
|
7-10
|
35
|
*
|
****
|
|
|
|
62-010
|
10-14
|
35
|
*
|
****
|
|
|
|
62-014
|
14-20
|
45
|
*
|
****
|
|
|
|
62-020
|
20-30
|
50
|
*
|
****
|
|
|
|
62-030
|
30-40
|
90
|
*
|
****
|
|
62-200
|
62-040 -
|
62-040
|
40-50
|
95
|
**
|
****
|
|
|
62-070
|
62-050
|
50-60
|
95
|
**
|
****
|
|
|
|
62-060
|
60-70
|
95
|
**
|
****
|
|
62-200 /
|
62-070 -
|
62-070
|
70-80
|
95
|
**
|
****
|
|
62-300
|
62-0125
|
62-080
|
80-100
|
140
|
***
|
|
|
|
|
62-0100
|
100-125
|
140
|
***
|
|
|
|
|
62-0125
|
125-150
|
140
|
***
|
|
* = set 1 62-101
** = set 2 62-201
*** = set 3 62-301
**** = combination set 62-105, including free carrying case
