Bega Betex PB350 STEEL HAND PUMPS (350cm3, steel)
Manufacturer: BEGA Model: PB350 Origin: Netherlands - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Pressure rating (bar): 700
Usable oil capacity cm3: 350
Weight kg: 5,5
accessories: Option
Details

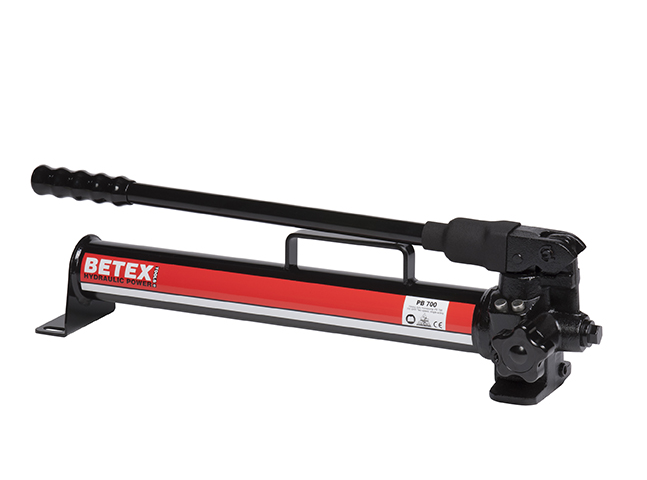

BETEX PB / HC SERIES - STEEL HAND PUMPS, HEAVY-DUTY, 700 BAR
- Betex heavy duty hand pumps feature a forged construction made of steel
- The drop-forged base and rugged welded construction effectively prevents collision damage and deformation
- The professional choice for a wide range of industrial applications
- Internal overload valve prevents pump from being used beyond its rated capacity
- Two-speed pumps provide rapid pumping to load the cylinder quickly
- External adjustable relief valve with locking mechanism
- Carrying handles for easy portability
Also available as a HAND PUMP SET, this includes:
- T-adaptor
- gauge
- hose 1,8 mtr.
- couplings
- steel storage case
|
Model
|
Pressure rating Bar
|
Usable oil
capacity cc
|
Oil volume per stroke cc
|
Oil port
thread F
|
Weight
kg
|
||
|
1st stage
|
2nd stage
|
1st stage
|
2nd stage
|
||||
|
PB350
|
13.8
|
700
|
350
|
13.0
|
2.8
|
3/8 NPT
|
5.5
|
|
PB600
|
13.8
|
700
|
600
|
13.0
|
2.8
|
3/8 NPT
|
7
|
|
PB700
|
13.8
|
700
|
700
|
13.0
|
2.8
|
3/8 NPT
|
7.3
|
|
HC1500
|
13.8
|
700
|
1500
|
13.0
|
2.8
|
3/8 NPT
|
11.2
|
|
HC2000
|
13.8
|
700
|
2500
|
13.0
|
2.8
|
3/8 NPT
|
12
|
