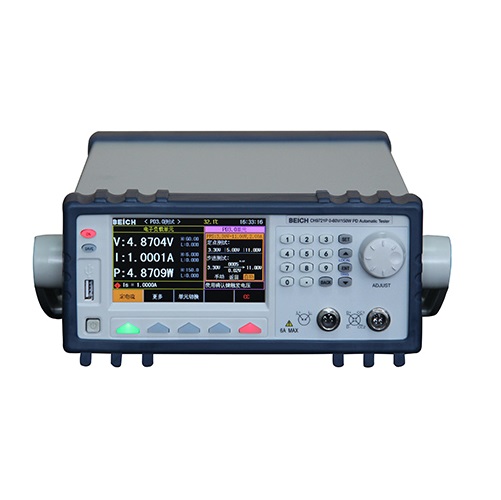

Beich CH9720P Fast Charging Automatic Tester (QC2.0/QC3.0; 60V; 6A; 150W)
Manufacturer: Beich Model: CH9720P Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Support Quick charge protocol: QC2.0/QC3.0, PD2.0, MTK PE2.0, D+D-voltage test
Mode: CV, CC, CP, CR
Display: 4.3 inch TFT display
Max.input voltage: 60V
Max. input current: 6A
Max. input power: 150W
Voltage accuracy: 0.05%+0.03%FS
Current accuracy: 0.05%+0.05%FS
Min. resolution:
- Voltage: 0.1mV
- Current: 0.1mA
List auto test: CC, CV, CR, CP, SHORT; OPEN up to 15 steps of arbitrary combination programming
Battery test:
- Input voltage: 0.8-60V; Max. capacity: 999A/H
- Discharge time: 1-60000 seconds
Dynamic test: 0.1mS-999S; Error<2.5% + 0.1mS
Data storage: Internal 50 groups, External 100 groups
Remote test: Available
RS232C: Available
Protection: Over voltage, over current, over power, over temperature; Polarity inverse
Temperature and humidity: 0℃~40℃, ≤90%RH
Power supply: 198-242VAC 99V-121VAC 47.5-63Hz
Consumption: ≤40VA
