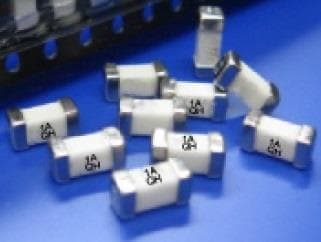

Bel Fuse 0679H0500-01 Fast Acting Ceramic Fuse 500mA 350 VAC 72 VCD
Manufacturer: Bel Fuse Model: 0679H0500-01 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2.54 mm
Height: 2.54 mm
Length: 6.1 mm
Fuse Type: Fast Blow
Resistance: 240 mOhms
Unit Weight: 332.674 mg
REACH - SVHC: Details
Current Rating: 500 mA
Interrupt Rating: 50 A at 350 VAC, 100 A at 72 VDC
Fuse Size / Group: 2410 (6125 metric)
Voltage Rating AC: 350 VAC
Voltage Rating DC: 72 VDC
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
