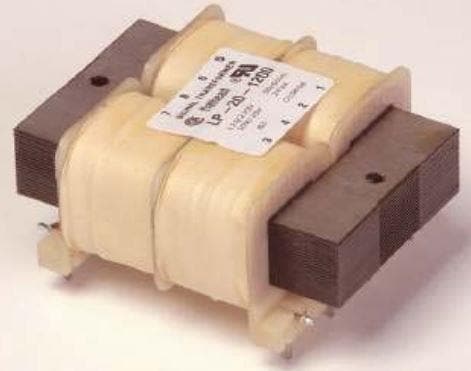

Bel Signal Transformer LP-12-200 Low Profile Transformer 50\60 Hz, Laminated Transformer
Manufacturer: Bel Signal Transformer Model: LP-12-200 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 39.6 mm
Height: 16.5 mm
Length: 47.5 mm
Unit Weight: 140 g
Power Rating: 2 VA
Mounting Style: Through Hole
Primary Winding: Dual Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: Solder Pin
Operating Frequency: 50 Hz/60 Hz
Primary Voltage Rating: 115 VAC, 230 VAC
Secondary Current Rating: 200 mA/400 mA
Secondary Voltage Rating: 12.6 V CT/6.3 V
