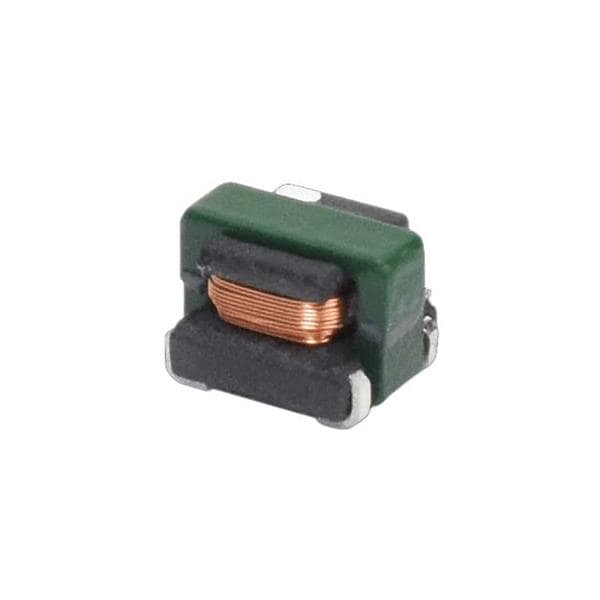

Bel Signal Transformer SCS-4-4-100T-TR Current Transformers SMD Current Transformer 820uH-TR
Manufacturer: Bel Signal Transformer Model: SCS-4-4-100T-TR - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 3.65 mm
Height: 3.55 mm
Length: 4.7 mm
Core Size: 4.4 mm
Inductance: 820 uH
Turns Ratio: 100:1
Current Rating: 7 A
Mounting Style: SMD/SMT
Frequency Range: 50 kHz to 1 MHz
Termination Style: SMD/SMT
Secondary Resistance: 9.5 Ohms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
