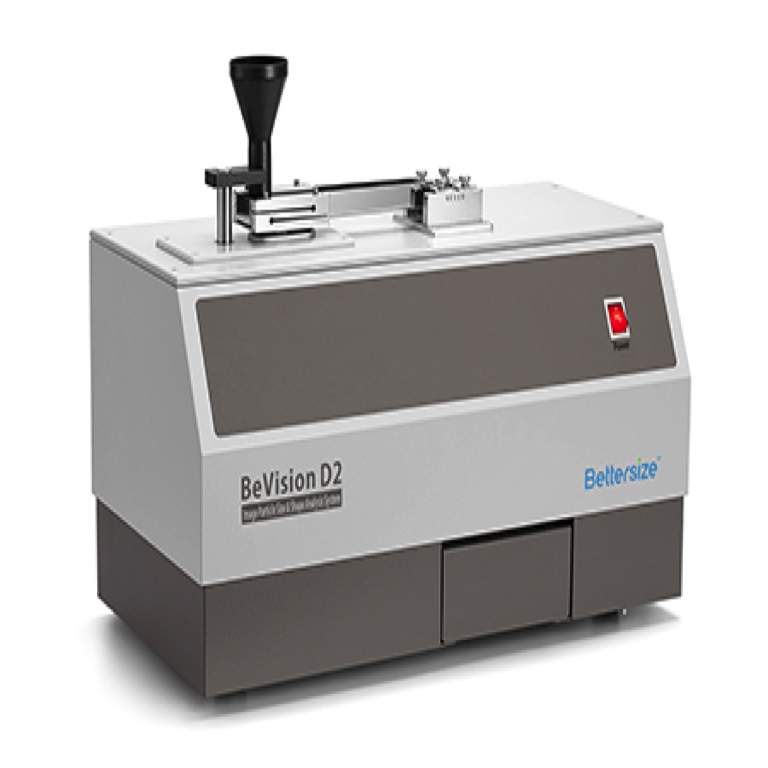

Bettersize BeVision D2 Dynamic Image Analyzer (30 – 10,000 µm)
Manufacturer: Bettersize Model: BeVision D2 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
General
Measuring principle: Dynamic image analysis method
Parameters: Particle size, shape, and number
Measurement performance
Measuring range: 30 – 10,000 μm
Typical measurement time: 1 to 3 min *
Number of size / shape classes: 100 (user adjustable)
Special functions: SOP settings, automatic tests, analysis of saved images
Main device
High-speed: CCD camera Up to 120 images per second
Light source: White LED stroboscopic parallel light source
System parameters
Dimensions (L × W × H): 61.0 × 35.0 × 44.0 cm
Weight: 26 kg
Supply voltage: 100 / 240 V, 50 / 60 Hz
Software
Conformity: ISO 13322, ISO 9276
Reports: Customizable reporting
