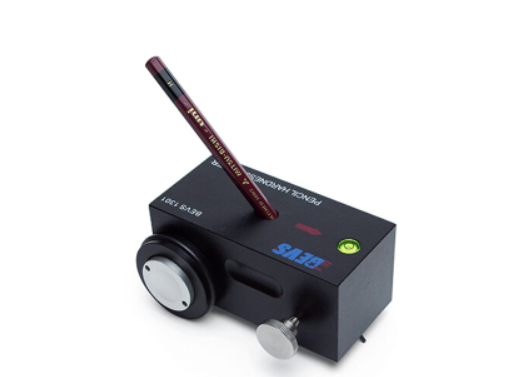

Bevs BEVS 1301/500 Pencil Hardness Tester (500g)
Manufacturer: Bevs Model: BEVS 1301/500 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Pressure of pencil tip: 500g
The angle between pencil and film surface is 45°
Three points are touched on the tested surface (roller, pencil tip)
Scratch Speed: 1 mm/sec
Hardness Class:
Hardness Increase: 6B-5B-3B-2B-B-Hb-F-H-2H-3H-4H-5H-6H (softer to harder)
Mitsubishi pencils are available upon request
Introduction:
BEVS1301 Pencil Tester complies with the requirements of ASTM D3363 and ISO 15184 standard, through leaving a superficial trace on the dry coating film with a certain pencil hardness, the surface will be variably damaged by the hardest pencil to evaluate pass/fail or hardness. Recommend to apply on the smooth film surface.Use variety of different hardness pencils,the angle between pencil and the coated surface is 45°, scratch on the coated surface under a certain of force, the scratch resistance hardness of the coating is the pencil hardness which just scratched the coating.
Standard: ASTM D3363, ISO 15184
Order Information:
BEVS 1301/500 Pencil Hardness Tester (500g)
BEVS 1301/750 Pencil Hardness Tester (750g)
BEVS 1301/1000 Pencil Hardness Tester (1000g)
