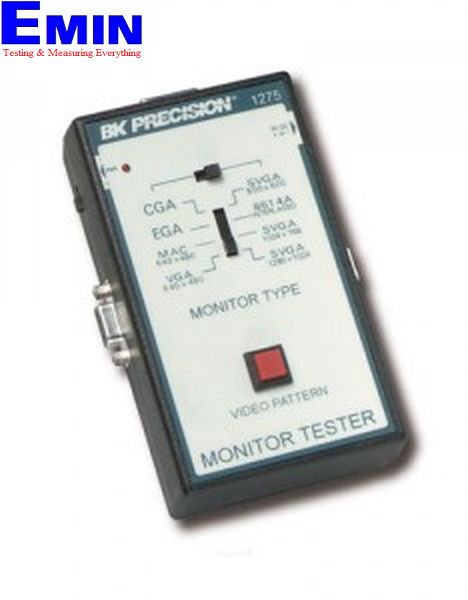

BK Precision 1275 Portable Video Pattern Generator ((PC, MAC, Video)

Manufacturer: BKPRECISION
Model: 1275
- Request a Quotation
Contact
- Add to Cart
- Buy
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Specifications
Manufacturer Info

- Features
+ CGA,VGA, SVGA
+ Standard DB-9, DB-15 and DB-15 Hi-res mini connectors
- Available Patterns:
+ Color Bars
+ Black Raster
+ Color Rasters
+ Dot
+ Crosshatch
+ Auto/Manual
- Resolutions for PC
+ 1280 x 1024
+ 1024 x 768 (non-interlaced)
+ 8415A (interlaced)
+ SVGA 800 x 600
+ SVGA 1024 x 768
+ VGA 640 x 480
+ EGA
+ CGA
- Resolutions for MAC: 640 x 480
- Power Source:9V battery or AC adapter
- Dimensions: (38 x 97 x 145mm)
- Weight: 0.5 lbs. (227g)
Included Accessories: 9V battery

Details

Great handheld unit to test PC and Mac monitors. The model 1275 is ideal for the field or the service bench. Small, portable and very effective, the 1275 generates crosshatch, dots, color bars and raster patterns in green, blue, red, black and white.
