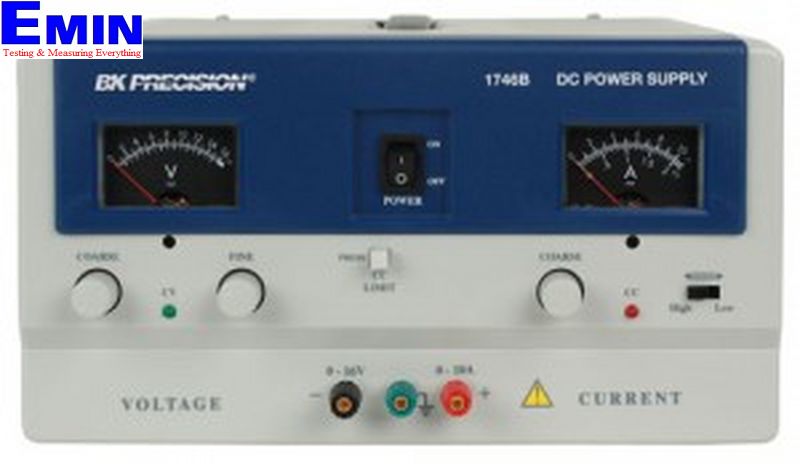

BK Precision 1746B Analog DC Power Supply (0-16V/10A)

  • Manufacturer: BKPRECISION
    Model: 1746B
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufaturer: BK Precision - USA
Model: 1746B
Output Voltage: 0-16 V
Output Current: 0-10A
Ripple & Noise: 1mV rms, <3mArms
Metering: 2-Analog
Overload Protection: Current limiting, reverse polarity, overvoltage, short circuit
Power Requirements:  120/220 VAC ±10%, 50/60 Hz
Power Consumption: 380W
Dimension: 145x267x381 mm
Weight: 10.4kg

Detail
  • Continuously monitor voltage and current output on two analog meters
  • Connect two supplies in parallel to double the current output
  • Connect two supplies in series to double the voltage output
  • Reliable, Durable
  • Operate continuously at full load without overheating
  • Fully overload protected
  • Coarse and fine voltage controls
  • Excellent regulation
  • Very low ripple
  • Constant voltage or constant current operation
