BKPRECISION 2704C Manual Ranging Tool Kit DMM with Transistor test

Manufacturer: BKPRECISION
Model: 2704C
Origin: Taiwan
Guarantee: 12 Month
Contact
In stock: 1 Unit
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0345.689.536

Specifications
Manufacturer Info

DCV: 200 mV , 2 V , 20 V , 200 V , 1000V /0.8 %
ACV: 200 mV , 2 V , 20 V , 200 V , 750V /2.0 %
DCA: 20 mA, 200 mA, 10 A /3.0 %
ACA: 20 mA, 200 mA, 10 A /3.0 %
R: 2200 Ω, 2 kΩ, 200 kΩ, 20 MΩ, 2000 MΩ /1%
C: 2 nF , 20 nF , 200 nF , 2.0 uF , 20 uF /4 %
F: 2 kHz, 20 kHz, 200 kHz, 2 MHz, 20 MHz /0.1 %
Diode Test: yes
Continuity test: yes
hFE Transistor test: 0 to 1000
Logic Test: Logic Hi (2.8 V ±0.8 V) / Logic Lo (0.8 V ±0.5 V)
Display: 3 1/2 digit, 2000 count LCD
Power: 9 volt battery
Dimensions: 165 mm (H) x 78 mm (W) x 42.5 mm (D)
Weight: 285 g
Included: User manual, one set test of leads, one spare fuse, and 9V battery (installed)

Details

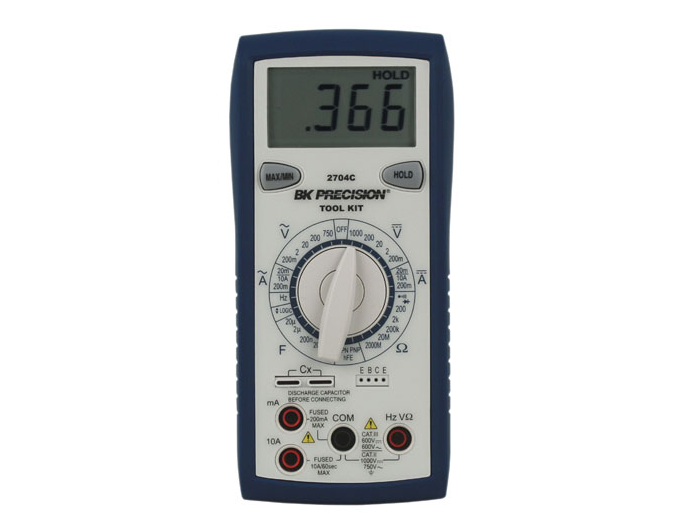

The 2704C has all of the functionality for basic Digital Multimeter applications including some high end features you might not expect. The 2000 count LCD can display resistance values up to 2 Gohm, capacitance to 20 uF or a transistors common-emitter gain value up to 1000. Value-packed features make this meter a must in every "Tool Kit®".

Features
