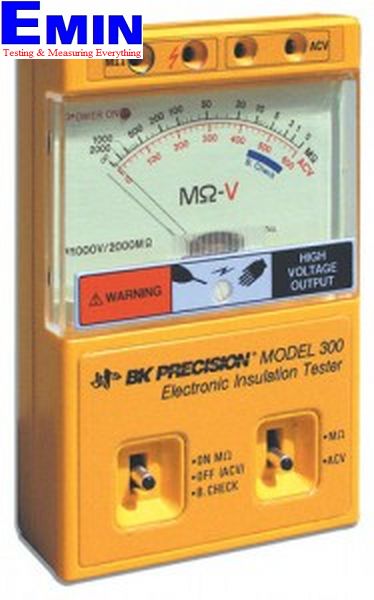

BK Precision 300 Megohmmeter (2GΩ, 1000V)

Manufacturer: BKPRECISION
Model: 300
Contact
- Request a Quotation
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636

Dong Nai: 0345.689.536

Specifications
Manufacturer Info

Output Voltage: 1000VDC
Maximum current: 250µA
Resistance Range: 1MΩ -2000MΩ
Center Scale: 50MΩ
Accuracy: 1% of scale length
AC Voltage Test: 0 to 600 VDC
Dimensions: 169 x 106 x 36mm
Weight: 430g
Supplied: Batteries, Carrying Case, Test Leads, Instruction Manual

Details

This insulation tester is intended primarily for periodic testing of industrial motors, transformers, electrical wiring, and cable insulation for signs of deterioration. Low readings may indicate impending failure allowing for permit replacement of suspect component during routine maintenance rather than risking component failure. It is also useful for safety testing of TV sets and appliances to assure no hazardous leakage current. The voltage and resistance ratings for insulation testing are often specified for the product to be tested.
