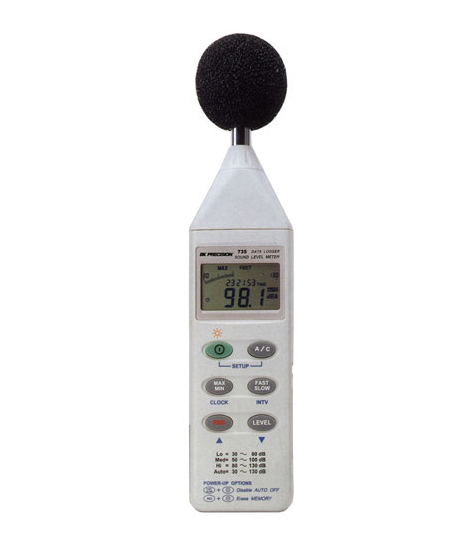

BK Precision 735 Digital Sound Level Meter

Frequency range: 31.5Hz ~ 8KHz
Measuring level range: 30 ~ 130dB
Dataloger:32000 records.
Frequency weighting: A / C
Microphone: 1/2 inch electret condenser microphone
Display: LCD
Digital display: 4 digits
Resolution: 0.1dB
Display Update: 0.5 sec.
Analog display: 50 segment bargraph
    Resolution: 1dB
Display Update: 50 mS
Time weighting: FAST (125mS), SLOW (1 sec.)
Level ranges: Lo:  30  – 80 dB
Med: 50 – 100 dB
Hi:   80 – 130 dB
Auto: 30 – 130 dB
Accuracy:  ±1.5dB (under reference conditions @ 94dB, 1KHz)
Alarm function: “OVER” is when input is more than the upper limit of range.
  “ UNDER ” is when input is less than the lower limit of range.
MAX/MIN hold: Holds readings the Maximum and Minimum Value.
AC output: 1 Vrms
DC output: 10mV / dB
Power supply: One 9V battery
Electromagnetic Compatibility:
RF field = 3V/m
Total accuracy = specified accuracy + 0.5dB
Dimensions (L x W x H): 10.8  × 2.5  × 1.2inch (275  ×  64  ×  30mm)
Weight: 285g
Accessories: 9V battery, carrying case, Screwdriver, Instruction manual, Windscreen,  software & RS-232 cable

Details

Whether you are testing for OSHA compliance, quieting equipment, or monitoring the roar of a stadium crowd, B&K Precision Sound Level Meters can get the job done. The model 735 Sound Level Meter provides 30~130 dB capability in three convenient measurement ranges Low, Med and Hi with an accuracy of ±1.5 dB. The meter meets the IEC 651 Type II and includes frequency weighting A & C and fast and slow time weighting. Two auxiliary ports provide either AC output, 1Vrms full scale, or DC output, 10mV /dB. With the model 735, B&K Precision can meet all your sound testing needs.

  • Windows Software Included
  • Clock Display
  • 32,000 Records Data Logger
  • RS-232 Interface (not compatible with USB converters)
  • Bargraph
  • MAX/MIN function
  • Auto Ranging (30 ~ 130dB)
  • Resolution 0.1dB
  • Level Range Display
  • AC/DC Signal Output
  • Auto Power Off
  • Backlit LCD
