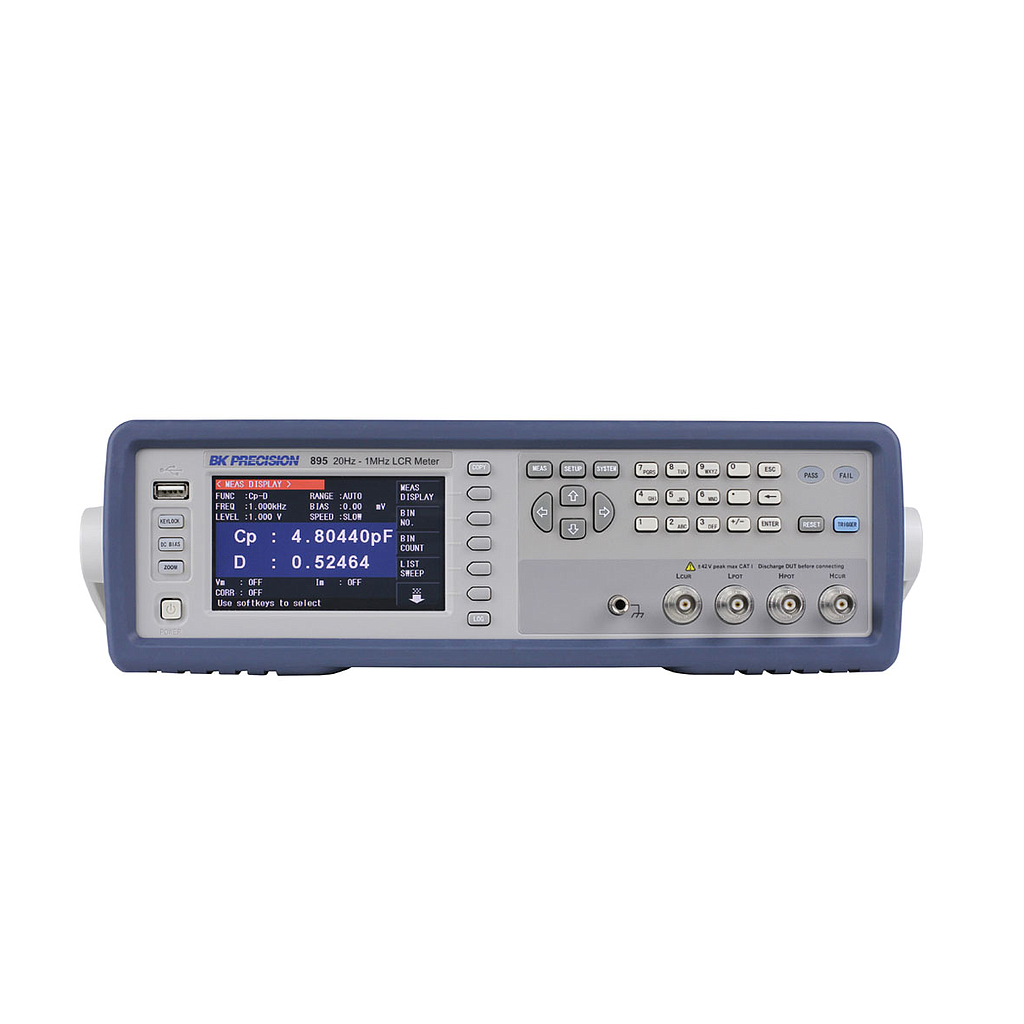

BKPRECISION 895 Bench LCR Meters (20 Hz - 1 MHz / 0.01 Hz / 0.01 %)

Features & Benefits
AC test signal voltage adjustable up to 2 Vrms
3 AC current ranges, selectable via 30 Ω,
50 Ω or 100 Ω internal AC impedance. The
30 Ω setting provides up to 66.7 mArms of
drive current, sufficient for larger inductors
and transformers.
Built-in DC bias source adjustable from
-5V to +5V / -50 mA to +50 mA
Fast measurement speed up to 13 ms/reading
to increase manufacturing throughput
Adjustable measurement speed for fast readout
or better accuracy
201-point programmable list sweep function
providing ability to sweep frequency, AC
and DC bias voltage/current levels
Auto-level control to maintain the
measurement signal applied to the DUT at a
constant level
Test signal voltage and current monitoring
BIN comparator function to sort components
in up to 10 bin locations
Handler interface for easy integration with a
component handler
1 m and 2 m cable compensation
4-terminal fixture and Kelvin clip test leads
included
Transformer test function with optional
transformer test fixture TL89T1
Versatile trigger functionality (internal,
external, bus and manual)
Standard USB, LAN, and GPIB (895 only)
interface for remote control using SCPI
commands
