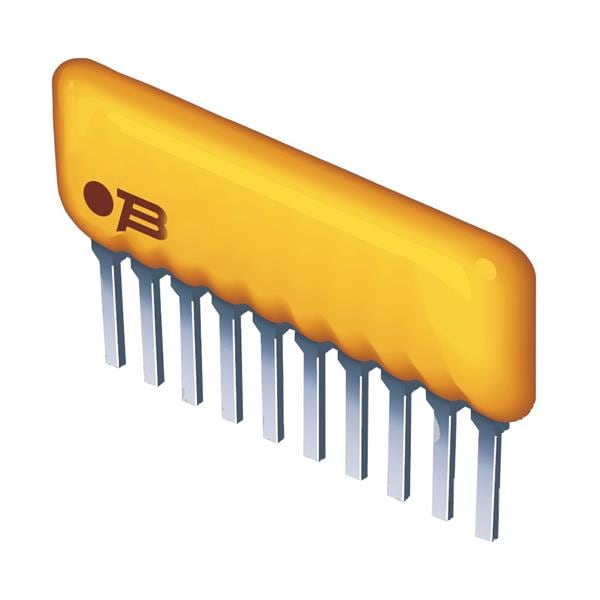

Bourns 4608X-102-105FLF Thick Film Conformal SIPs, Low Profile 8Pin 1% 1M Isolated
Manufacturer: Bourns Model: 4608X-102-105FLF - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2.49 mm
Height: 5.08 mm
Length: 20.27 mm
Tolerance: 1 %
Unit Weight: 523 mg
Circuit Type: Isolated
Lead Spacing: 2.54 mm
Lead Diameter: 0.508 mm
Number of Pins: 8 Pin
Voltage Rating: 100 V
Resistor Values: 1 MOhms
Power per Element: 125 mW (1/8 W)
Termination Style: SIP
Number of Resistors: 4 Resistor
Power Total Package: 1 W
Temperature Coefficient: 100 PPM / C
Operating Temperature Range: - 55 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
