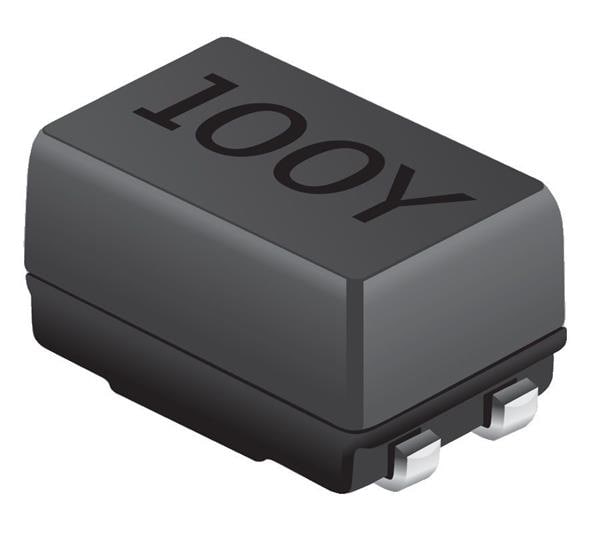

Bourns SRF0905-652Y Line Filter 6500 uH 0.3A 0.3-2MHz
Manufacturer: Bourns Model: SRF0905-652Y - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 6 mm
Height: 5 mm
Length: 9.2 mm
Impedance: 5 kOhms
Tolerance: 50 %
Inductance: 6.5 mH
Unit Weight: 455 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 300 mA
Number of Channels: 1 Channel
Maximum DC Resistance: 1.05 Ohms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
