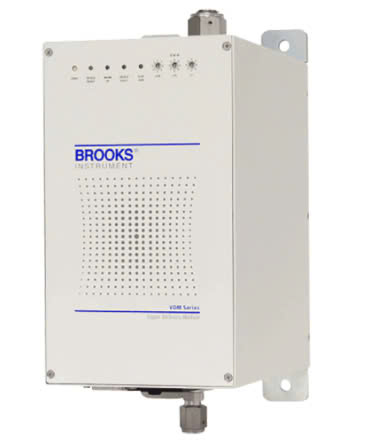

Brooks Instrument VDM3-1 DI Water Vapor Delivery Module (1/4” VCR Male, 3000sccm)
Manufacturer: Brooks Instrument Model: VDM3-1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Series Inlet Fitting: 1/4” VCR Male
-Performance
Full Scale Ranges (H2O): 3000sccm
Turndown Ratio: 20:1
Step Response Time: ≤ 2 seconds (±2% of setpoint)
Accuracy: ±1.0% of setpoint (> 10% full scale); ±0.2% of full scale (5-10% full scale setpoint)
Linearity: ±0.5% of full scale
Repeatability: ±0.2% of full scale
Temperature Coefficient: 0.05% F.S. per °C (zero and span)
Valve Shutdown: <0.5% F.S. (water vapor)
-Electrical
Communication: Analog or EtherCAT
Connections: 15-pin D-Sub and dual RJ-45
Input Signals:
Flow setpoint (0 to 5 Vdc)
Start up/drain
Output Signals:
Flow output (0 to 5 Vdc)
Ready to use
Power:
DC: ±15 Vdc ±5% @ 1.2 amp
AC: 208 - 230 Vac, 50/60 Hz, 290 watts nominal
Diagnostic Port: Micro USB
For more details, see datasheet.
