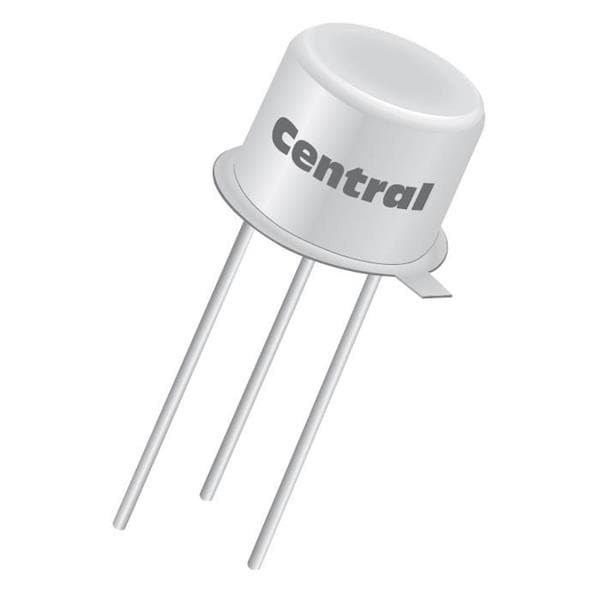

Central Semiconductor 2N5785 PBFREE BJTs - Bipolar Transistors NPN Switch SS
Manufacturer: Central Semiconductor Model: 2N5785 PBFREE - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Technology: Si
Unit Weight: 4 g
Configuration: Single
Mounting Style: Through Hole
Transistor Polarity: NPN
Pd - Power Dissipation: 1 W
DC Current Gain hFE Max: 100 at 1.6 A, 2 V
Gain Bandwidth Product fT: 1 MHz
Emitter- Base Voltage VEBO: 5 V
Collector- Base Voltage VCBO: 65 V
Maximum DC Collector Current: 3.5 A
Maximum Operating Temperature: + 200 C
Minimum Operating Temperature: - 65 C
DC Collector/Base Gain hfe Min: 20 at 1.6 A, 2 V
Collector- Emitter Voltage VCEO Max: 50 V
Collector-Emitter Saturation Voltage: 1 V
