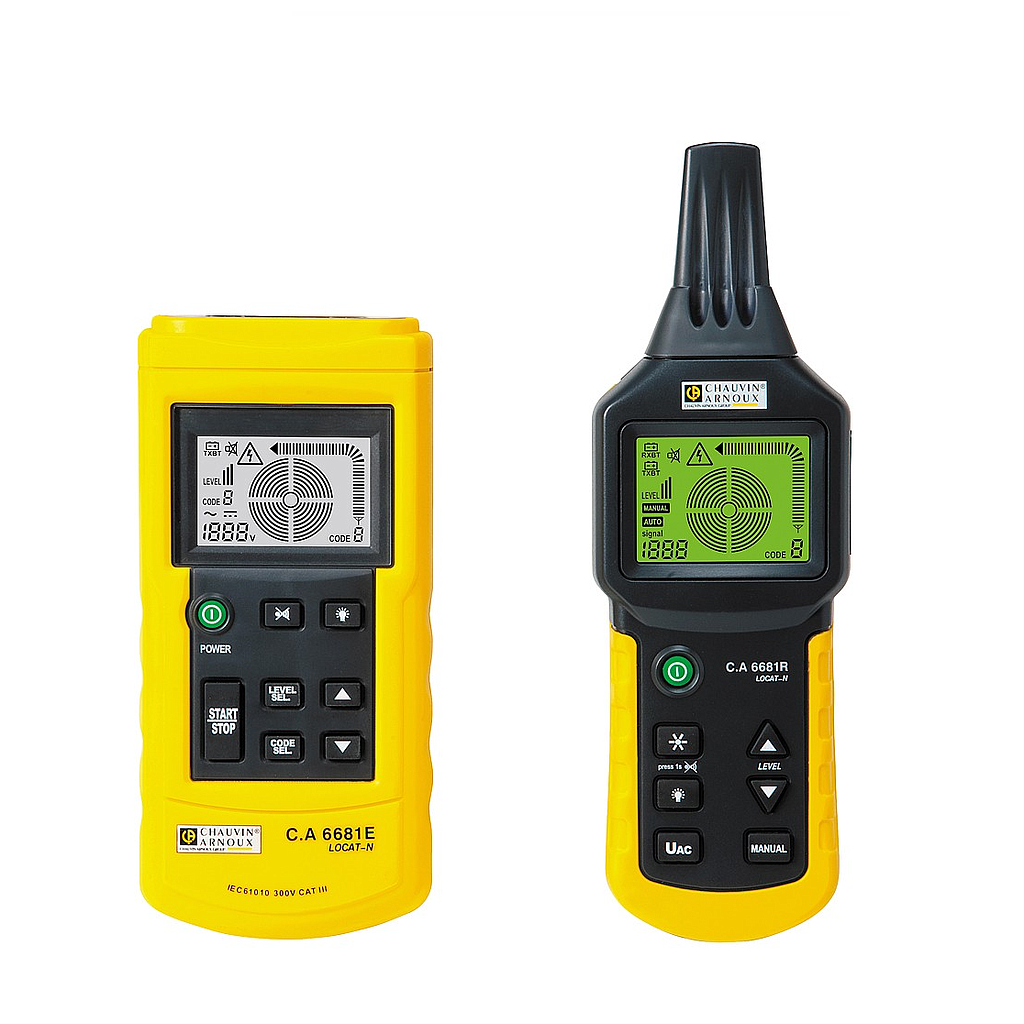

Chauvin Arnoux C.A 6681 LOCAT-N Locate hidden cables

C.A 6681E transmitter
- Screen: LCD screen with display of functions and bargraph
- Output signal frequency: 125 kHz
- External voltage measurement range: 12 to 600 VAC/DC
- Functions: Digital coding of signals for easy signal identification, selection of transmission signal code, torch function
- Power supply: 9 V battery
- Dimensions: 190 x 89 x 42.5 mm
- Weight: 420 g with battery
- Electrical safety: 300 V CAT III
C.A 6681R receiver
- Screen: Backlit LCD with display of functions and bargraph, transmission code, receiver and transmitter battery-charge status
- Detection Depth
+ Single-pole application : 0 to 2 m
+ Two-pole application: 0 to 0,5 m
+ Simple looping line: Up to 2.5 m
- Identification of mains voltage: Approximately 0 to 0.4 m
- Functions: Automatic shutdown, automatic or manual adjustment of reception sensitivity, torch function
- Power supply: 241.5 x 78 x 38.5 mm
- Dimensions: 340 x 300 x 200 mm
- Weight: 360 g with batteries

State at delivery:
delivered  in  a  hard  case  with  1  set  of  red/black  4  mm  isolated  banana leads (straight male / elbowed male), 1 set of 2 crocodile clips, 1 stake for earthing,1 x 9 V battery, 6 x 1.5 V AAA batteries, 1 measurement adapter for B22 socket (bayonet), 1  adapter  for  E14  socket  (screw-in),  1  mains  socket  adapter  and  1  operating  manual  in 5 languages.
