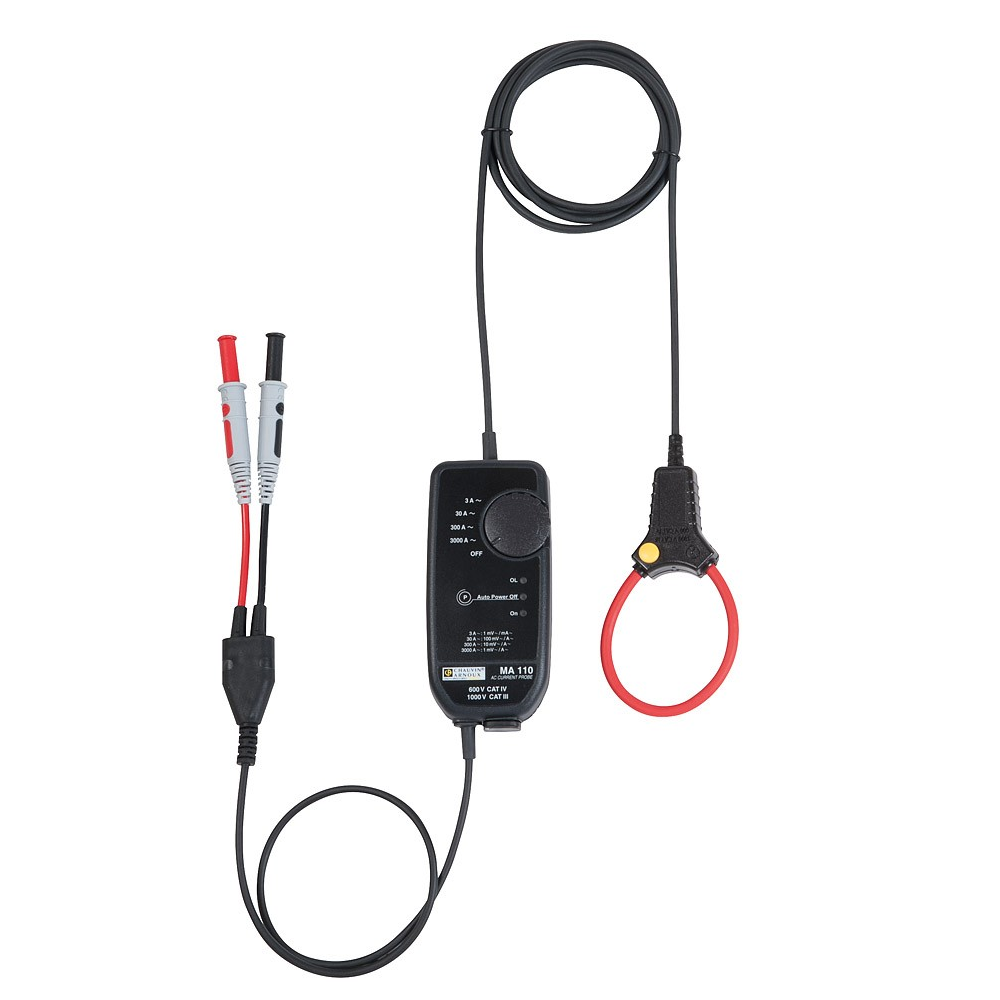

Chauvin Arnoux MA110-170 AmpFlex® flexible probes for AC current (3000A; 17cm/Ø4.5cm)
Manufacturer: Chauvin Arnoux Model: MA110-170 P/N: P01120660 Origin: France - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Input
+ Very low current: 0.02 A - 3 A; 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Low current: 0.02 A - 3 A; 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Medium current: 0.02 A - 3 A; 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ High current: 0.02 A - 3 A; 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ AC: yes
- Output / Connections
+ Voltage: 3 VAC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1 V/A; 100 mV/A; 10 mV/A; 1 mV/A
+ Power measurement (low phase shift): yes
+ Bandwidth (frequency in Hz): 10 Hz .. 10 kHz; 10 Hz .. 20 kHz; 10 Hz .. 20 kHz; 10 Hz .. 20 kH
+ Typical accuracy: ≤ 1%
datasheet
user guider
catalog vietnamese
catalog english
Advantages
- Flexible single-phase current sensors
- Measurements from 80 mA to 3 kA
- Battery life: 300 hours
- IP67, 600 V CAT IV
Description
The MiniFlex® MA110 Series comprises 3 flexible sensors which can be connected directly to any multimeter, wattmeter, logger, etc.
These flexible coils offer the following major advantages:
• Current measurement even in places where access is difficult
• Large measurement range
• Bandwidth suitable for industrial frequencies and harmonic analysis
• No saturation effect, so no overheating
• Constant low phase shift appropriate for wattmetric measurements
Main specifications:
• Measurement range: 80 mA to 3 kA
• 4 calibres
• Sensor length (clamping Ø): 17 cm, 25 cm or 35 cm (Ø4.5 cm, Ø7 cm, Ø10 cm)
• Ingress protection of sensor/processing unit: IP67 / IP54
• Output signal: AC voltage
• Output via two-wire lead terminated by 2 x Ø 4 mm straight male banana safety connectors
• Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
• Battery life: 300 hours
• 600 V CAT IV
