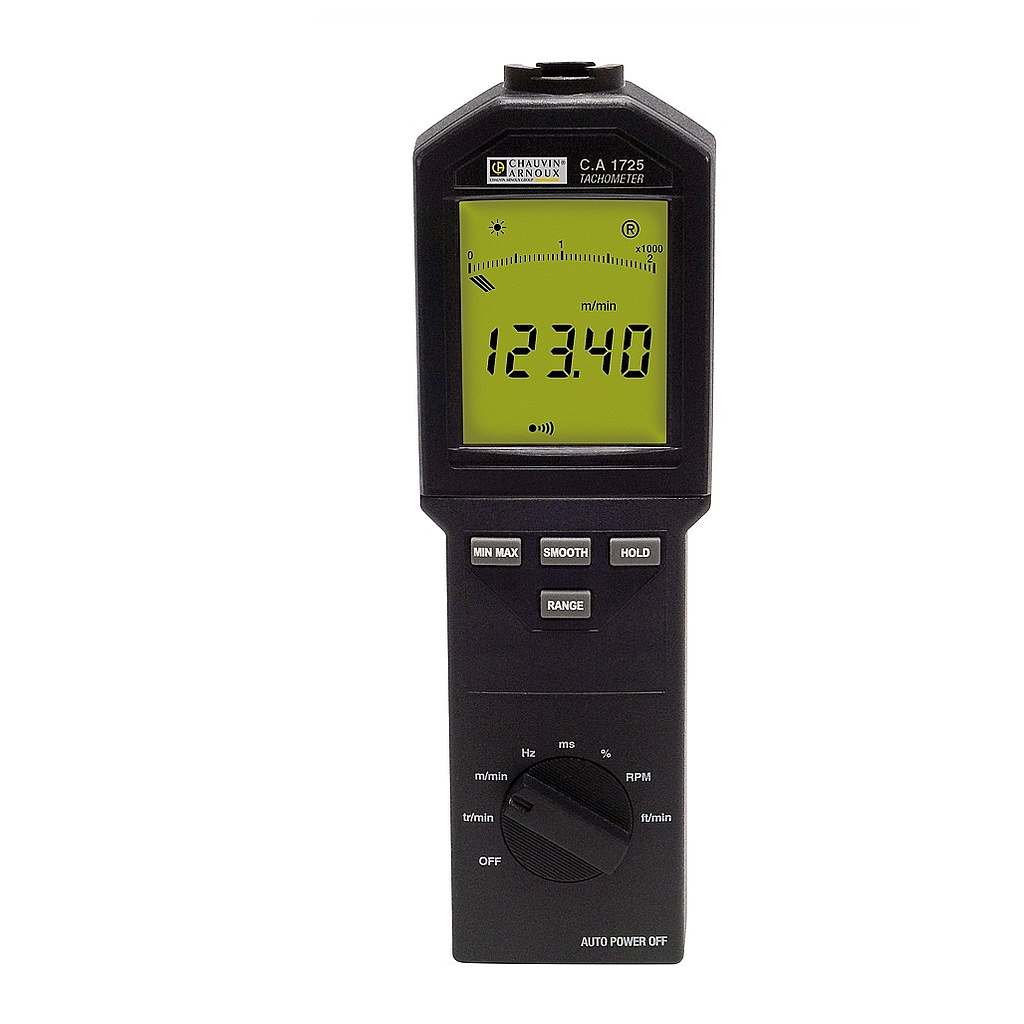

Chauvin Arnoux C.A 1725 Tachometers (60 - 100,000 RPM)

• Measurement up to 100,000 RPM
• Contact and non-contact measurement
• Wide range of functions available: rotation speed, linear, counting frequency, period

- RPM function
+ Range: 6 to 100,000 RPM
+ Accuracy: 10-4 R ± 6 cts
- m/min function:
+ Range: 0.6 to 60,000 m/min
+ Accuracy: 10-4 R ± 1 increment
- Hz function
+ Range: 0 .1 to 10,000 Hz
+ Accuracy: 4 x 10-5 R ± 4 cts
- ms function
+ Range: 0.1 t o 10,0 00 ms
+ Accuracy: 10-4 R ±5 cts
- Ratio function
+ Range: 10 to 10,000 %
+ Accuracy: 0.1% to 1%
- Functions: Min., Max., HOLD, Smoothing
- Dimensions / Weight: 21 x 72 x 47 mm / 250 g

State at delivery: delivered in a hard case with 1 FRB F connector, a 9 V battery,  1  set  of  15  reflective  strips  (length:  0.1  m),  1  operating  manual  on  CD  and 1  printed  quick  startup  guide

Accessories:
- Mechanical accessories kit P01174902
- End fittings (set of 3) P01174903
- Reflective strips (15 x 0.1 m strips) P01101797
- FRB F connector P01101785
- TACHOGRAPH software on CD-Rom P01174835
- Cable: USB-A to USB-B P01295293
