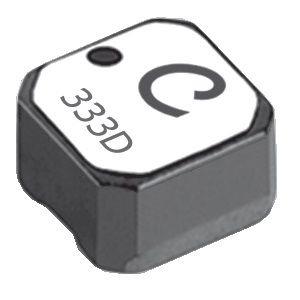

Coilcraft LPS5030-475MRC Power Inductor 4.7 mH Shld 20% 59mA 26Ohms
Manufacturer: Coilcraft Model: LPS5030-475MRC - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 4.9 mm
Height: 3 mm
Length: 4.9 mm
Core Type: Drum
Shielding: Shielded
Tolerance: 20 %
Inductance: 4.7 mH
Application: Automotive
Termination: Standard
Unit Weight: 224 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 110 mA
Saturation Current: 59 mA
Maximum DC Resistance: 26 Ohms
Self Resonant Frequency: 1.1 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
