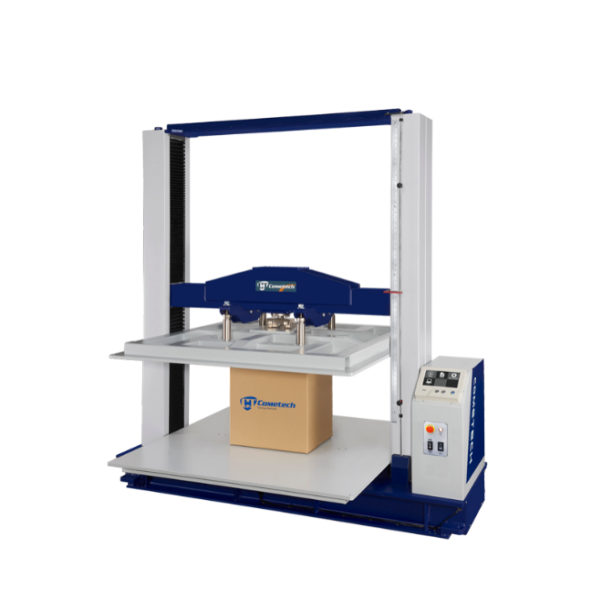

Cometech QC-121D2 (Type A) Box Compression Tester

Test space: 100 x 100 x 120 cm

Max Capacity: 20 kN (2 kg); 50 kN (5 kg)

Units

      Force:gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)

      Pressure:Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 23 bits

Force Precision: ±1% (with range 5~100% load cell capacity)

Stroke Resolution: 0.001mm

Speed Range: 2~200 mm/min

Speed Precision: ±1%

PC-Port: RJ45(TCP/IP) [Software is optional]

Data Sampling Rate: Max. 1200Hz

Motor: DC motor

Hardware Protection: Upper/ Lower limit, Emergency stop button

Power: Single Phase 220V, 10A

Dimension (WxDxH):152 x 100 x 196 cm

Weight:800 kg
