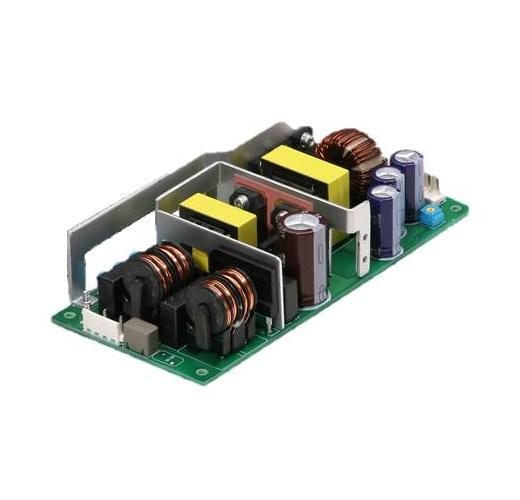

Cosel LFA150F-48-J1Y Switching Supplies AC/DC PS(Open frame)
Manufacturer: Cosel Model: LFA150F-48-J1Y - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2.9 in
Height: 1.5 in
Length: 6.3 in
Industry: Industrial
Efficiency: 88 %
Unit Weight: 390 g
Output Power: 153.6 W
Input Voltage: 85 VAC to 264 VAC
Cooling Method: Convection
Mounting Style: Chassis
Input Frequency: 50 Hz/60 Hz
Load Regulation: Regulated
Mechanical Style: Open / Enclosed Frame
Isolation Voltage: 3 kVAC
Number of Outputs: 1 Output
Power - Convection: 153.6 W
Input Voltage - Max: 264 VAC
Input Voltage - Min: 85 VAC
Open Frame/Enclosed: Open Frame
Output Current-Channel 1: 3.2 A
Output Voltage-Channel 1: 48 VDC
Operating Temperature Range: - 10 C to + 70 C
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 10 C
