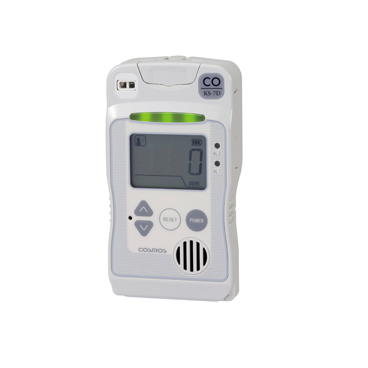

COSMOS KS-7D Carbon Monoxide indicator and Alarm (0-75 ppm, 0-150 ppm, 0-250 ppm, 0- 400 ppm)
Manufacturer: COSMOS Model: KS-7D - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gas Detected: Carbon Monoxide
Sensor Type: Electrochemical
Detection Range: 0 to 75 ppm, 0 to 150 ppm, 0 to 250 ppm, or 0 to 400 ppm
Power Source: 24 VDC ±10%
Power Consumption: Monitoring: 1W, During alarm: 3W
Alam Set Value:
+ For F.S. 75ppm: 25/50ppm
+ For F.S. 150ppm: 50/100ppm
+ For F.S. 250ppm: 50/150ppm
+ For F.S. 400ppm: 50/150ppm
External Output:
+ Gas concentration analog output: 4-20m ADC
+ Gas alarm contact for 1st and 2nd stage: 1a non-voltage
+ Latching (standard) or non-latching
Operating Temperature/humidity: -5 to +40 °C / 30 to 85 %RH
Weight: Approx. 300g
Options: Battery Unit KS-7xB
