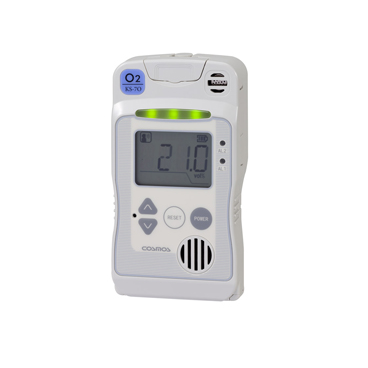

COSMOS KS-7O Oxygen Indicator and Alarm (0-25.0 vol% or 0-50.0 vol%)
Manufacturer: COSMOS Model: KS-7O - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Gas Detected: Oxygen
Sensor Type: Galvanic Cell Sensor
Detection Range: 0 to 25.0 vol% or 0 to 50.0 vol%
Power Source: 24 VDC ±10%
Power Consumption: Monitoring: 1W, During alarm: 3W
Alam Set Value:
+ For 25.0vol%: 1st stage 19.0vol%, 2nd stage: 18.0vol%
+ For 50.0vol%: 1st stage 18.0vol%, 2nd stage: 25.0vol%
External Output:
+ Gas concentration analog output: 4-20m ADC
+ Gas alarm contact for 1st and 2nd stage: 1a non-voltage
+ Latching (standard) or non-latching
Operating Temperature/humidity: -10 to +40 °C / 30 to 85 %RH
Weight: Approx. 300g
Options: Separate Sensor Unit KS-7OF, Battery Unit KS-7xB
