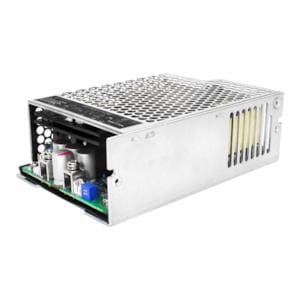

CUI Inc VMS-550C-27-CNF AC to DC Power Supply 27 Vdc, 20.4 A, 550 W
Manufacturer: CUI Inc Model: VMS-550C-27-CNF - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 86 mm (3.386 in)
Height: 43 mm (1.693 in)
Length: 130 mm (5.118 in)
Industry: ITE, Industrial, Household
Dimensions: 130 mm x 86 mm x 43 mm
Efficiency: 93.5 %
Output Power: 550.8 W
Input Voltage: 90 VAC to 264 VAC, 127 VDC to 370 VDC
Mounting Style: Chassis
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 4 kVAC
Number of Outputs: 1 Output
Power - Convection: 320 W
Power - Forced Air: 550 W
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 20.4 A
Output Voltage-Channel 1: 27 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
