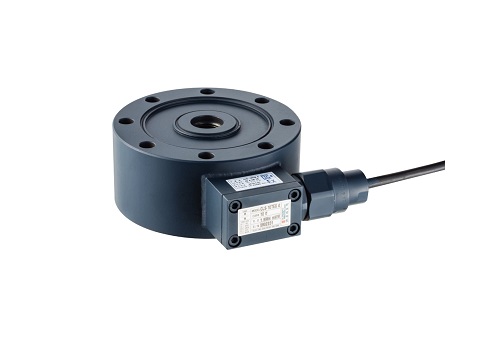

CURIOTEC CLS-Ex d-3T Pan Cake Load Cell (3 Tf)
Manufacturer: CURIOTEC Model: CLS-Ex d-3T - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Max.Capacity (Tf): 3
Rated output ( mV/V): 2.0±0.005
Zero balance ( mV/V): 0.0±0.03
Combined error (%RO): 0.05
Repeatability (%RO): 0.02
Creep (30 min.) (%RO): 0.03
Temperature effec on
+ Zero value (%RO/10℃ ): 0.03
+ Output value (%RO/10℃ ): 0.03
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 350±3.5
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
