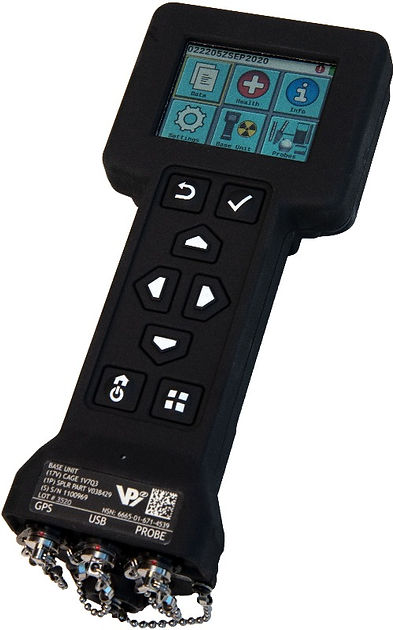

D-tect Systems V038429 Radiological detector (NSN: 6665-01-671-4539; 0.1µGy/hr - 100 Gy/hr)

Units of Measurement

Count Rate - cpm, cps.

Dose/Exposure Rate - mrad/hr, µGy/hr, mrem/hr, µSv/hr, mR/hr

Total Dose/Exposure - rad, Gy, rem, Sv, R

Detection: Gamma/x-ray radiation - 0.1µGy/hr - 100 Gy/hr

Photon detection - 60 keV - 3 MeV

Beta detection - 200 keV - 3 MeV

Neutron & Alpha detection with external probe

Data: Records detection readings, date/time, location. 45+ hours of data storage

Detectors: Low dose and high dose Geiger-Mueller tubes

Dose Measurement Range: 0.01 µSv to 10 Sv (1µrem to 1000 rem)

Operational

Operation: 8 buttons for easy menu access and navigation

Display: High contrast, impact resistant LCD screen, visible in direct sunlight

Alarms: Audible and visual

Audio: 3mm audio jack for headset operation

Electrical

Power 4AA batteries or AC Power Supply

Mechanical

Dimensions: 8.3” x 3.45” x 2.2” (21.1 x 8.8 x 5.7 cm)

Housing: Anodized cast aluminum

Weight: 1.66 lb. including 4AA batteries (.75 kg)

Environmental

Operating Temp.: -22° to 122.7°F (-30° to 50°C)

Storage Temp.: -58° to 140°F (-50° to 60°C)

Relative Humidity: 3% to 100%

Ingress Protection: IP67

Salt Fog: Resistant (MIL-STD 810G, Method 509.5)

Explosive Atmosphere: Intrinsically safe

Immersion: Water & salt water 1 meter deep - 30 min
