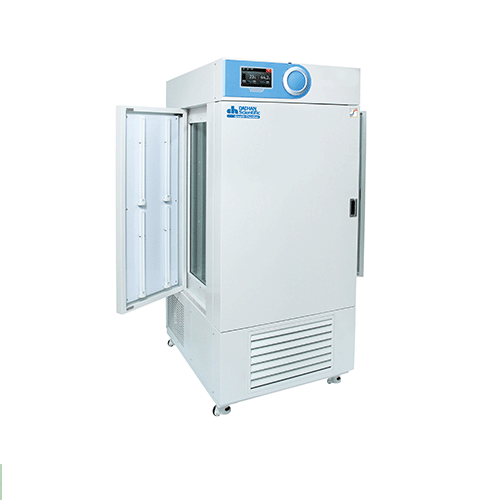

DaiHan DH.SWGC30450 Plant Growth Chamber (432Lit)

- Capacity: 432 L

- Temp.:

Range & Variation:  10℃ ~ 60℃, ±1℃ at 20℃

Fluctuation:  ± 0.5℃ at 10℃, ± 0.5℃ at 25℃ (0% light intensity); ± 1℃ at 10℃, ± 1℃ at 25℃ (100% light intensity)

- Humidity:

Range & Variation: 30% ~ 95% RH, ±3% at 60℃

Fluctuation: ±1%

Humidifier:  Evaporation by Fan with Heater

- Illumination

Range: 0 to 12,000 Lux

Lamp: FPL 55W×14

Bank: 3 Side Walls

- Temp. & Humidity Sensor: Temp. : PT100, Humidity : Capacitive Sensor

Heat-up Time (up to 37℃): 11 min. (0 % illumination) / 9 min. (100 % illumination)

Cool-down Time (down to 10℃): 13 min. (0 % illumination) / 15 min. (100 % illumination)

Temp. Recovery (After Door was opened for 30sec): 3 min. at 10℃, 1 min. at 37℃ (0 % illumination);  5 min. at 10℃, 1min. at 37℃ (100 % illumination)

- Heating Power /Consumption

for Temp.: 1.5 kW

for Humi.: 1.5 kW

- Compressor :1/2HP

- Program Function: Temperature and Humidity : 120 Patterns, 1,200 Segments

- Light Bank : 7 steps

- Door:

Internal Tempered Safety Glass with Silicon Packing

External 3-Side Magnetic Packing Door with Light Bank

- Shelf (Included): 4 PE-coated Steel Shelf

- Permitted Total Load: 64 kg (16kg×4 Shelves)

- Material: Internal : Stainless-steel (＃304), External : Power Coated steel

- Dimension (w×d×h):

Interior (mm) 650×700×1050

Exterior (mm) 850×1,090×1,965

- Power Consumption" 4.8 kW

- Power Supply* AC 230V , 50/60 Hz or 3 Phase
