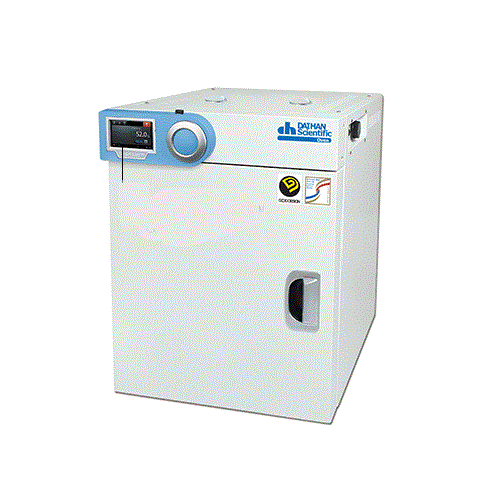

DaiHan ThermoStable SOF-50 SMART Forced-air Drying Oven (50L ,250℃, ±0.3℃)

Capacity: 50 Lit

Dimension(w x d x h):

+ Interior(mm): 370 x 345 x 420

+ Exterior(mm): 518 x 674 x 724

Heater Power: 650 W

Temp.Range: Room Temp +5°C to 250°C

Temp.Fluctuation: ±0.3°C at 100°C, ±0.5°C at 150°C

Temp.Variation: ±1°C at 100°C, ±1.8°C at 150°C

Temp.Sensor: PT 100

Control Resolution: ±0.1°C

Heat-up Time: 25 min. to 100 °C, 45 min. to 150 °C

Recovery Time (Door open 30 sec): 6 min. to 100°C, 6 min. to 150°C

Controller: Smart Lab™ Controller

RS232 Port: Available to connect with PC

Display: 4" Full Touch Screen TFT LCD

Timer: 99hr 59 min (delay/continuous function)

Storage: Temperature and Timer setting values

Material:

+ Internal: Stainless-steel(#304), Corrosion Resistant

+ External: Powder Coated Steel

+ Insulation: Glass Wool

Shelf(included):

+ 2 Wire shelf

+ Load per Stainless-steel Wire Shelf: 16 kg

Ventilation: (1ea) Ventilation hole with Stainless-steel Cap, Hole Diameter 40mm

Circulation: Forced-air Type

Safety device: Over Temp. and Over Current Protector, Sensor Error Detector

Alarm: Error Status and Timer-end

Net Weight(kg): 44

Packing size(w x d x h)(mm): 622 x 754 x807

Gross Weight(kg): 59

Power Consumption: 674 W

Energy Consumption at 100°C: 117 Wh

Energy Consumption at 150°C: 230 Wh

Electrical Reqts: 230V, 50/60Hz

Spare Stainless-steel Wire Shelf

DH.W0F11050 Wire Shelf, for 50 Lit, "OFS050", w340 x d310mm

DH.W0F11105 Wire Shelf, for 105 Lit, "OFS105", w455 xd375mm

DH.W0F11155 Wire Shel , for 155-/305-Lit, "OFS155", w520 x d440mm
