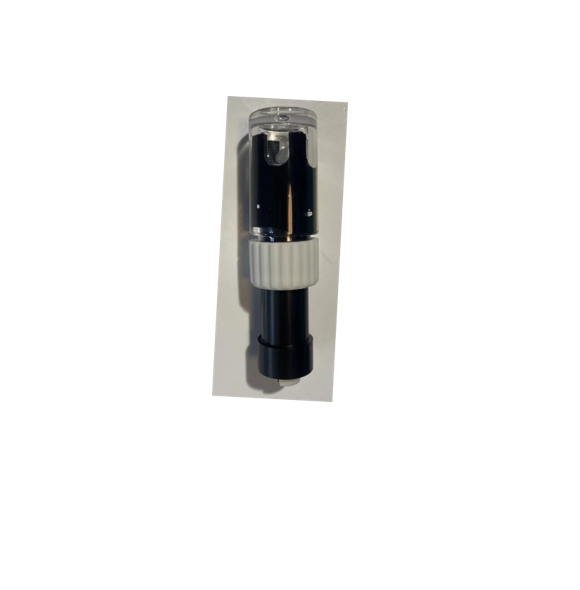

Daruifuno DPH890-CG-02 PH Sensor replacement head (RS485, for DUC2-PH series)
Manufacturer: Daruifuno Model: DPH890-CG-02 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Communication: RS485MODBUS-RTU
Response Time: T90＜10s
Work Pressure: ≤1 Bar
Sample Flow Rate: 0.5m/s≥ flow rate ≥0.001m/s
Operating Temp: 0~50℃ (doesnot freeze)
Storage Temp: 0~60℃ (does not freeze)
Dimension: Diameter: 38mm length:270 mm (Body: D38mm, L 270mm Head: D 27mm L: 115mm)
Mounting Thread: Immersedor pipedinstallation(Requires mounting accessory support)
Lead interface: One-pieceor split M16 connector
Protection Grade:IP68
Power Supply: 9~24VDC
Power Consumption: 0.2W
Weight: 550g
Cable Standard: 5 meters (otherlength can be customized)
PTFE reference port
Electrode head: diameter 27, length 115
