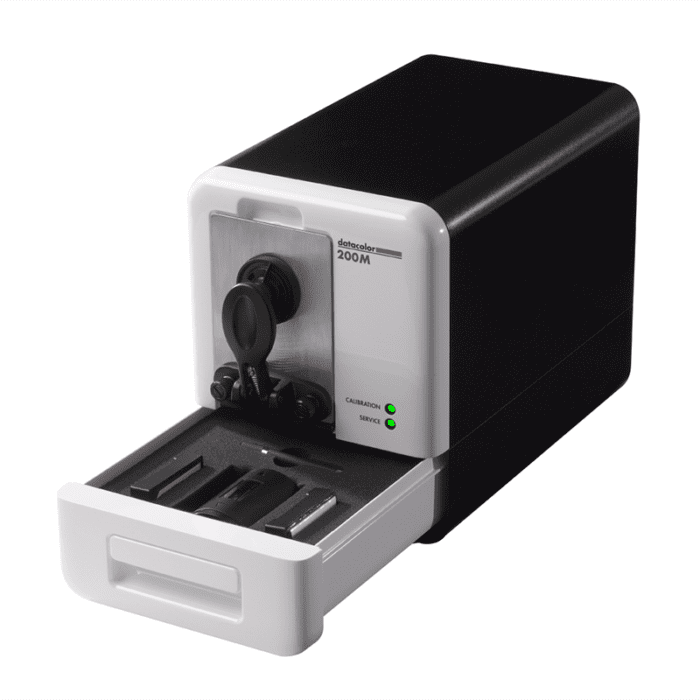

Datacolor Datacolor 200M Benchtop Spectrophotometer (0-200%)

Instrument Type: Dual Beam d/8 spectrophotometer

Measurement Geometry: Diffuse illumination 8°viewing

Light Source: Pulsed Xenon filtered to approximate D65

Wavelength Range: 400 nm – 700 nm

Reporting interval: 10 nm

Photometric range: 0 to 200%

Spectral Analyzer: Dual 256 diode array

Wavelength Alignment Method: Via software alignment

20 read repeatability on white tile using double flash (CIELAB) (1): 0.05 CIELab dE* max on white ceramic tile

Inter-instrument agreement: reflectance measurements (CIELAB) (1, 2 & 3 ): 0.5 CIELab dE* max of 12 BCRA tiles; 0.2 CIELab dE* avg of 12 BCRA tiles

Sample Temperature: N/A

IR Sensor Accuracy: N/A

Single Aperture Models: LAV (22 mm) SAV (9mm) USAV (6.5 mm)

Functional Operating Environment (2): 5 degree to 40 degree Celsius up to 85% RH, non-condensing

Physical Specifications:

Weight: 15 lbs 6.8 kg

Dimensions: 6.7″/17.01 cm (Width) X 8.5″/21.59″ cm (Height)

Power Requirements: 100-240 VAC; 50 to 60 Hz; 1A

Power Consumption: 1A

Statements of Note:: Comes complete with: Spectrophotometer with certificate of instrument performance, Declaration of conformity, Quick Start Guide, Secure USB cable, 6ft power cable, Accessory Drawer (with black trap, white calibration tile, green tile, USB memory Stick with user guide)

Recommended option: User Color Performance Monitoring Tool: Guardian

Additional Technical Specifications:

Specular Port: SCI/SCE for automatic gloss compensation

Data Interface: Secure USB or RS232 (RS232 Cable optional)
