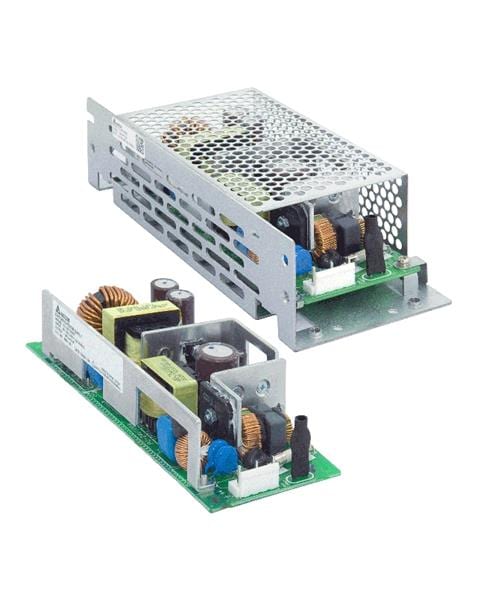

Delta Electronics, Inc. PJ-12V100WCRA Switching Power Supplies 100W / 12V - Enclosed with Remote On/Off
Manufacturer: Delta Electronics, Inc. Model: PJ-12V100WCRA - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2.83 in
Height: 1.77 in
Length: 7.28 in
Industry: Medical, Industrial
Approvals: EN60601-1, ES60601-1
Compliance: EN60601-1, ES60601-1
Efficiency: 87.5 %
Output Power: 102 W
Input Voltage: 85 VAC to 264 VAC
Mounting Style: Panel
Input Frequency: 50 Hz to 60 Hz
Load Regulation: Regulated
Isolation Voltage: 3 kVAC
Number of Outputs: 1 Output
Power - Convection: 102 W
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 8.5 A
Output Voltage-Channel 1: 12 VDC
