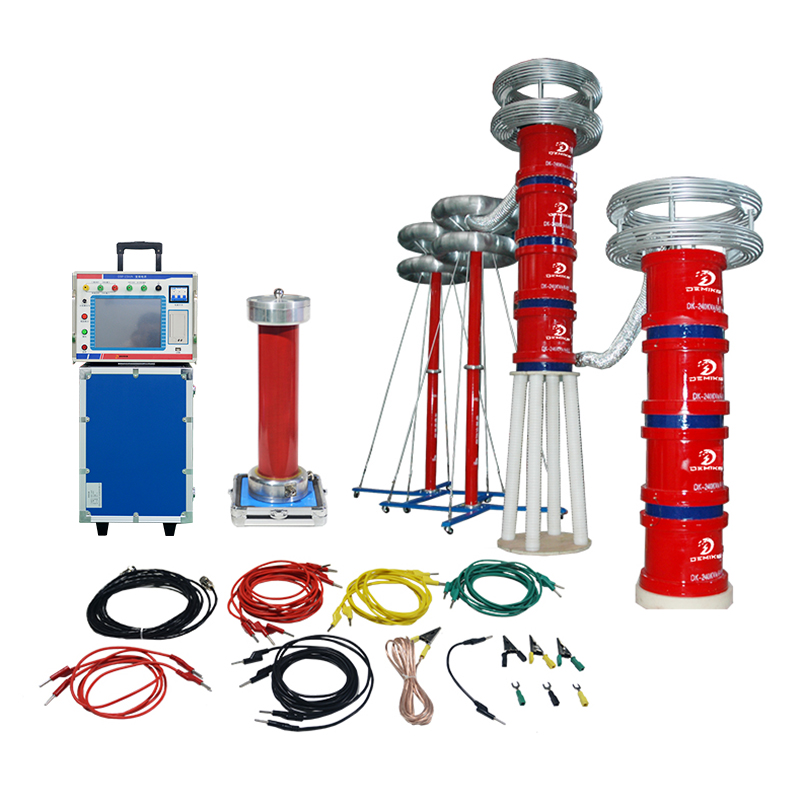

DEMIKS DBP-BD-270/270/45 Variable frequency resonance test system (15kW, 300kV)
Manufacturer: DEMIKS Model: DBP-BD-270/270/45 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Rated Output Voltage: ≤0~1000kV
Output Frequency: 30~300Hz
Resonate Voltage Waveform: Sine wave, distortion≤1.0%
Working Mode: Continuous working
Quality Factor: 30~90
Frequency Adjustment Sensitivity: 0.1Hz
Instability: <0.05%
Power Source
Single phase 220V or three phase 380V±10%
Power frequency 50Hz/60Hz±5%
Application (10kV~500kV transformer substation AC voltage withstand equipment, frequency 30~300Hz)
Frequency Power Source: 15kW
Resonant Reactor: 45kV/1A six sets(dry type)
Excitation transformer: 15kVA(dry type)
Divider: 300kV
Application
≤50000kVA 110kV transformer
110kV GIS, PT, CT ect.
35kV(300m㎡) cable ≤1.2km
10kV(300m㎡) cable ≤3.0km
