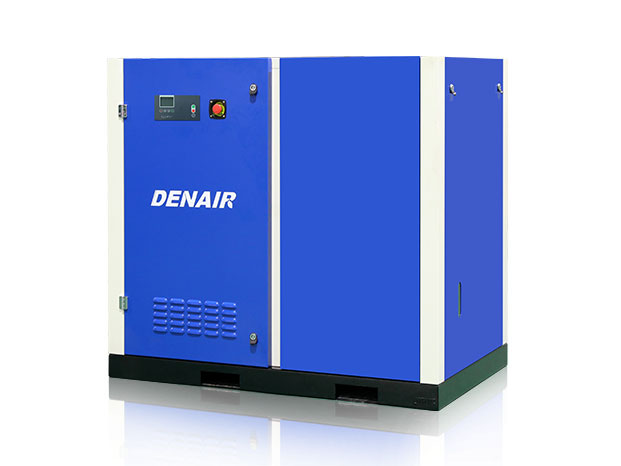

Denair DAV-355W PM VSD Screw Air Compressor (22.52-64.35 m³/min; 475 hp)
Manufacturer: Denair Model: DAV-355W - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Maxinmum working pressure: 7 / 8 / 10 / 12.5 bar(g) ( equivalent to 102 / 116 / 145 / 181 psig
Capacity(FAD): 22.52-64.35 m³/min ( equivalent to 795-2272 cfm)
Installed motor power: 355 kW; 475 hp
IP Grade: IP55
Noise level db(A): 80
Dimensions(mm) LxWxH: 3730*2380*2550
Weight (kg): 8400
Air outlet pipe diamete: DN125
Starting Method: Direct Driven; W-Water Cooling
EEI: EEI1
*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A) change without notice.
Specifications are subject to change without notice.
