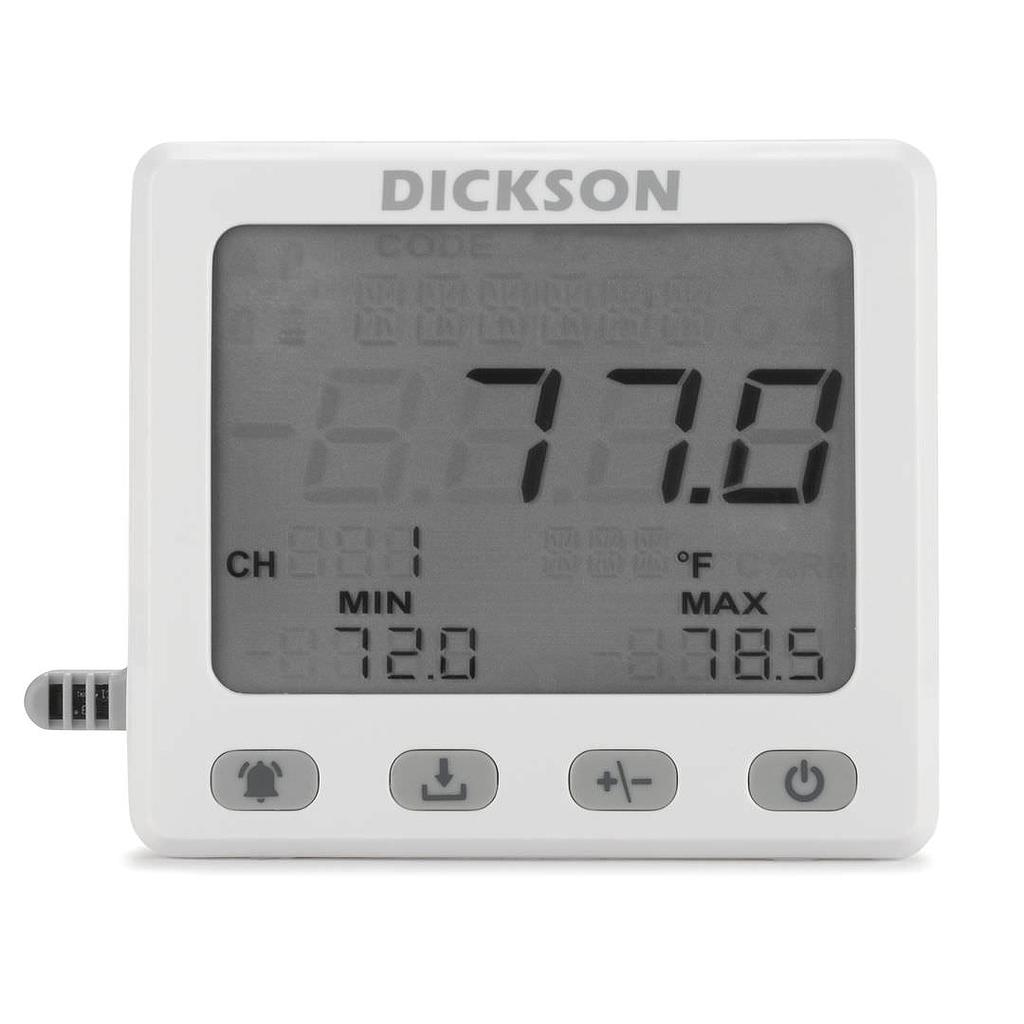

Dickson DSB-BUNDLE Display Logger (USB)

DSB

Alarm Type: Audio, Visual

Ambient Operating RH Conditions: 0-95% RH non-condensing

Ambient Operating Temperature Conditions: "32.0 to 158.0°F (0.0 to 70.0°C) (Below 32°F/0°C and Above 130F/54C with A900 extension cable only)"

Approvals: CE

Battery Life (Avg): 2 Years (At 5 minute Sample Interval and Display Refresh Interval and 72F. Shorter intervals will reduce battery life.)

Battery Type: 2 AA batteries

Channels: Up to 2 Channels

Data Capacity: ~400,000 readings

Dimensions: 87.0 x 76.0mm

Display Dimensions: 50 x 67mm

Display Resolution: 0.1 from 0.0 to 999.99; 1 over 1000

Display Type: LCD Display

Download Type: USB

Enclosure: White; ABS Plastic Clam Shell

IP Rating: 20

Mounting Options: Free Standing or Wall Mount (With Keyhole)

Power Source: Two user-replaceable AA Batteries (AC power adapter sold separately as A075)

Power Status Indicator: LCD Display

Sample Interval: Selectable (10, 30, 60, 90 seconds, 2, 5, 10, 15, 30 minutes, and 1 hour).

Sensor Type: Replaceable Sensors including: ambient temperature and humidity, thermistor in buffer solution, RTD, K-thermocouple

Software Options: SW05, SW06

Unit Weight: 125g

Details

The fully redesigned Dickson Display Logger (DSB) incorporates features from our best selling devices into non-connected units. With the logger, it’s easy to collect temperature and humidity data from Dickson’s Replaceable Sensors. Let Dickson be proactive about your data so you don’t have to be!

  • USB Enabled for fast downloading with Legacy Uploader

  • Easy-to-use Interface

  • Audio and Visual alarms

  • Compatible with Replaceable Sensors™
