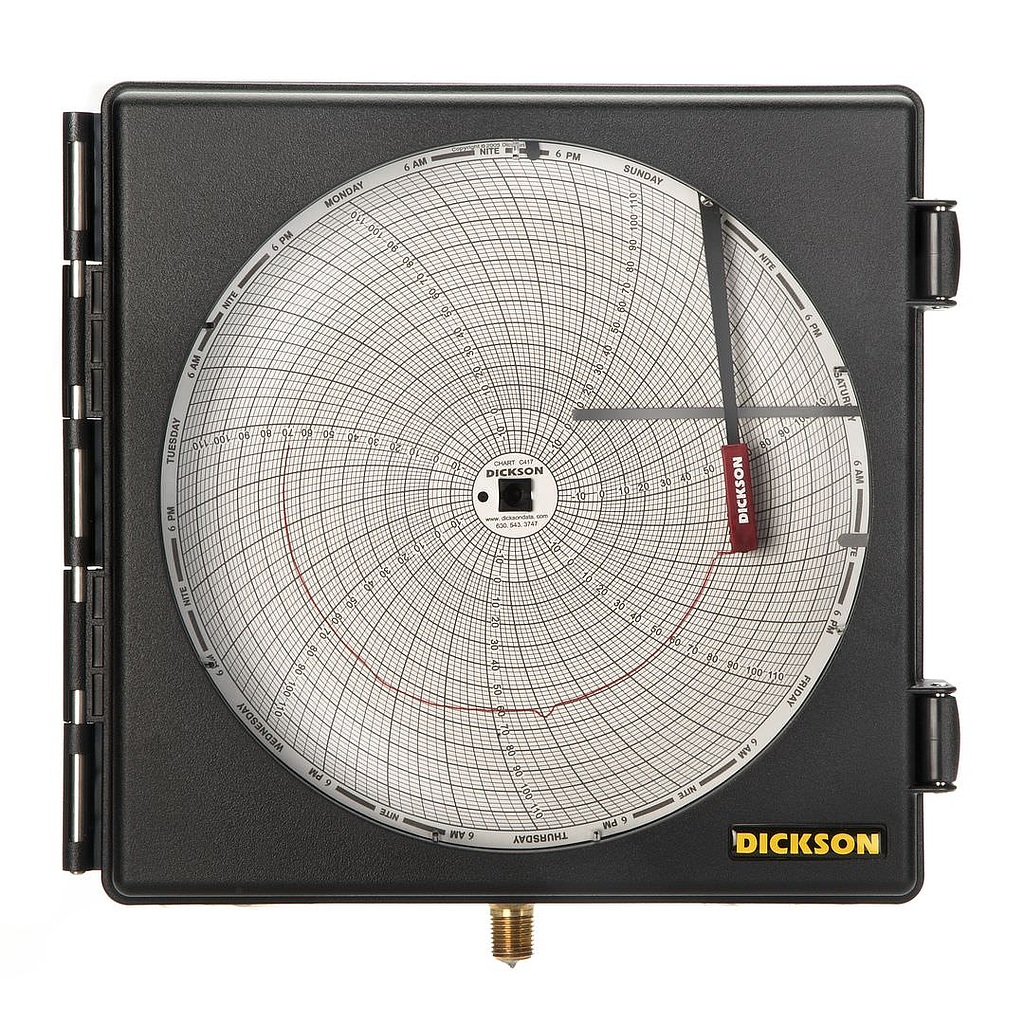

Dickson PW864 Pressure Chart Recorder (0.0 ~ 200.0PSI )

Ambient Operating RH Conditions: 0-95% RH non-condensing

Ambient Operating Temperature Conditions: -22.0 to 122.0F (-30.0 to 50.0C)

Battery Life (Avg): 1 Year

Calibration Options: N100, N300

Channels: CH1: Pressure

Chart Rotation Speed: 7 day

Dimensions: 3.6 x 10.3 x 9.5in

Enclosure: Plastic NEMA 4X Case with Window in Door

Fitting: 1/4" NPT Thread, 5/8" Hex

IP Rating: 66

Included Accessories: "One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately."

Mounting Options: Stem or Wall Mount (With Keyhole)

Power Source: Battery; One AA Battery (User Replaceable)

Pressure Accuracy: 2% of Full Scale

Pressure Range: 0.0 to 200.0PSI

Response Time: 1 to 5 Seconds

Unit Weight: 2.9 lbs
