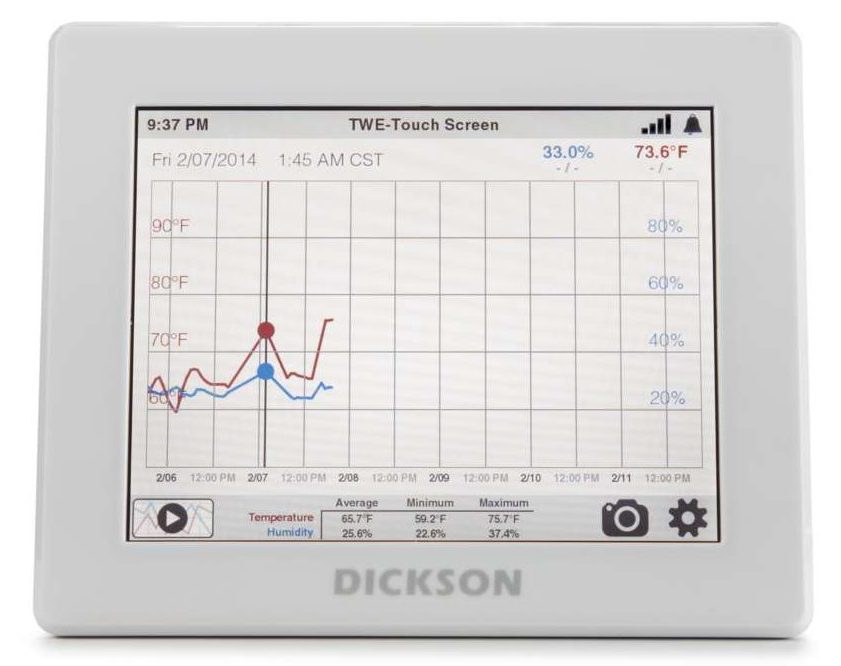

Dickson TOUCHSCREEN-BUNDLE DicksonOne Touchscreen
Manufacturer: Dickson Model: TOUCHSCREEN-BUNDLE - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Alarm Type: Audible/Visual (Phone, Text, and Email Alarms via DicksonOne Subscription)
Ambient Operating RH Conditions: 0 to 95% RH non-condensing (Logger Only)
Ambient Operating Temperature Conditions: TWE: 32.0° to 158.0° F (0.0 to 70.0° C); TWP: 32.0 to 140.0° F (0.0 to 60.0° C)
Antenna Type: Internal
Backup Battery: 70 Hours
Battery Type: Rechargeable Backup Battery
Cable Details: Up to 5 Probe Extensions (A898) can be used (50ft Total)
Calibration Options: N100, N300, N400, N995
Data Capacity: Approx 1,000,000 sample points (backup)
Dimensions: 8.5 x 1.75 x 7.0" (21.0 x 4.5 x 18.0cm)
Display Dimensions: 8" Diagonal
Display Type: LCD Touchscreen
Display Update Rate: Sample Interval Dependent (User Selectable)
Download Type: WiFi/Ethernet (DicksonOne Cloud), USB (must be formatted at FAT32)
Enclosure: Case Front: Polycarbonate; Case Back and Pods; ABS
Included Accessories: AC Adapter, Mounting Bracket and Kickstand
POE: Input Current Peak TWP: (At 48V) 235mA
POE: Input Voltage Range: TWP: 36.0 to 57.0V
Mounting Options: Mounting Bracket (Included with Touchscreen)
PC Requirements Windows 7 or more recent
Power Consumption: TWP: Up to 9W
Power Cord: 6 ft
Power Source: 100-240 VAC 50/60Hz 12V=1A
Required Software: DicksonOne SaaS Package, DicksonWare VERSION TBD
Resolution: LCD TBD
Sample Interval: User Selectable Sample Intervals: 60, 90 seconds / 2, 5, 10, 15, 30, 60 minutes. (10 and 30 seconds optional, please call for details)
Sensor Type: Replaceable Sensor (See Accessories for more information)
Unit Weight: 1.45lbs
DicksonOne is a cloud based environmental monitoring system for monitoring your critical variables. Plus, with multiple alarm notification methods, you can ensure the right people are up-to-date on any excursion with time to act before something spoils. Our capacitive 8″ touchscreen offers our best user experience ever and now features customizable views, alarms, and more.
Intuitive user-interface makes it easy to view and manage your data
Automatically calculates and updates summary data for the selected time range
Includes passcode protection for unit security
