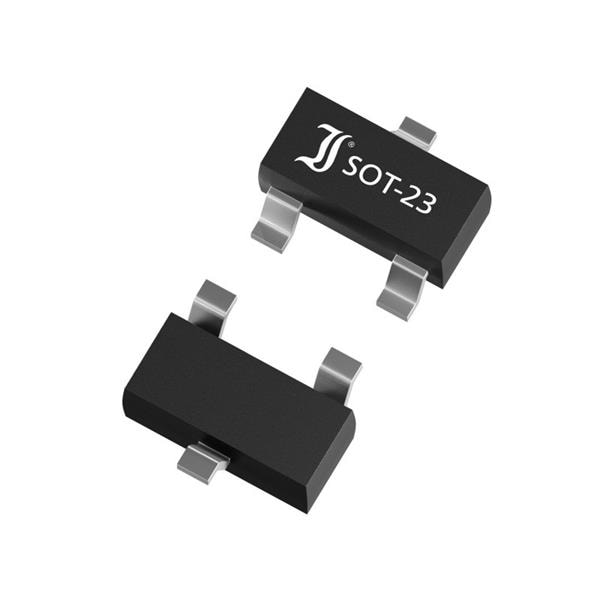

Diotec Semiconductor MMBTA42 BJTs - Bipolar Transistors BJT, SOT-23, 300V, 500mA, NPN
Manufacturer: Diotec Semiconductor Model: MMBTA42 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Unit Weight: 39 mg
REACH - SVHC: Details
Configuration: Single
Mounting Style: SMD/SMT
Transistor Polarity: NPN
Pd - Power Dissipation: 250 mW
DC Current Gain hFE Max: 200
Gain Bandwidth Product fT: 50 MHz
Emitter- Base Voltage VEBO: 6 V
Collector- Base Voltage VCBO: 300 V
Maximum DC Collector Current: 500 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Collector- Emitter Voltage VCEO Max: 300 V
Collector-Emitter Saturation Voltage: 500 mV
