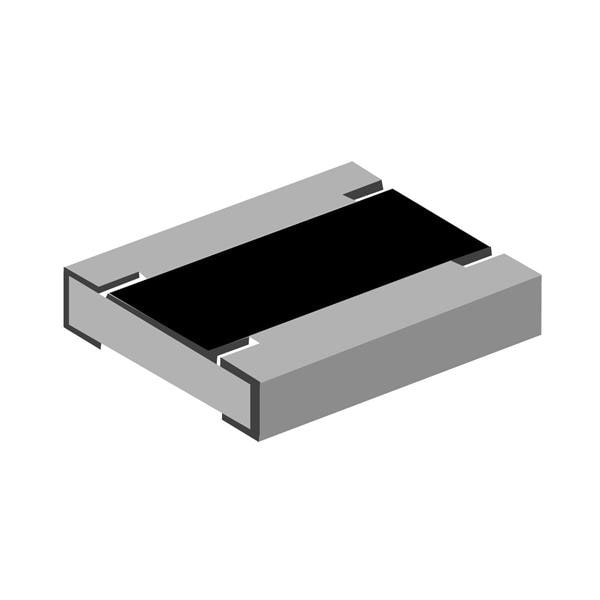

Vishay Draloric RCL04066R20JNEA High Power, Wide Terminal Resistor 1/4W 6.2ohms 5% 0406 200PPM
Manufacturer: Vishay Draloric Model: RCL04066R20JNEA - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Width: 1.6 mm
Height: 0.25 mm
Length: 1 mm
Features: Long-Side Termination
Tolerance: 5 %
Resistance: 6.2 Ohms
Technology: Thick Film
Application: Automotive Grade
Unit Weight: 2 mg
Power Rating: 250 mW (1/4 W)
Qualification: AEC-Q200
Mounting Style: PCB Mount
Voltage Rating: 50 V
Temperature Coefficient: 200 PPM / C
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 55 C
