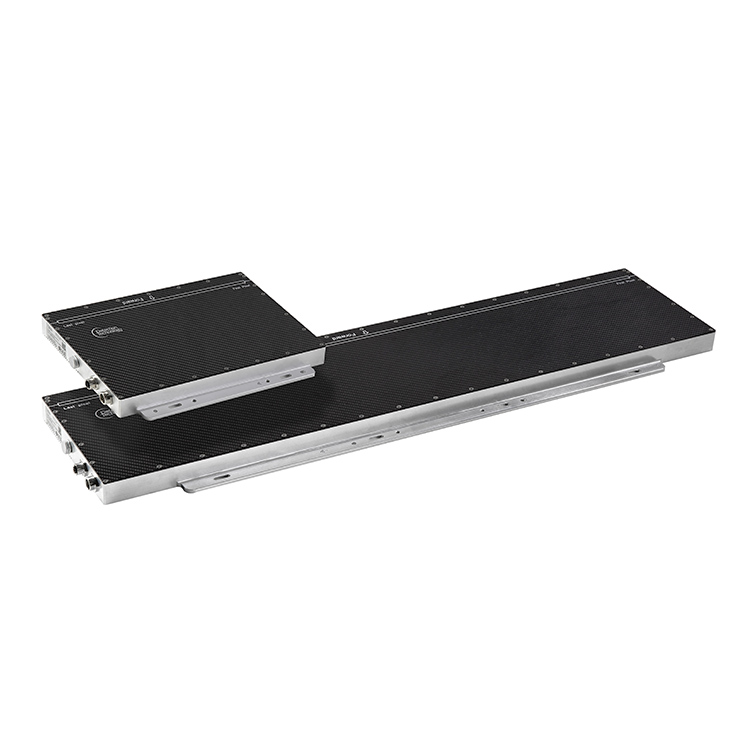

DT Detection Technology X-Scan T01040512A TDI X-ray line detector (8×1280, 512 mm)

Operational mode : Time delay integration (TDI)

Number of TDI stages : 8

TDI algorithm : Built-in

Pixel size : 0.4 x 0.4 mm

Pixel matrix : 8×1280

Active area: 512 mm

Dynamic range : typ 4500@25 °C

Maximum scanning speed : 180 m/min

Minimum integration time with TDI mode : 133 us

Maximum integration time:  100 ms

Scintillator, optimal energy range : 20kV~120kV

Mechanical dimensions (LxWxH) : 541×240×30

Weight :  7.0 kg

Internal radiation shield : Yes

Lifetime under X-ray : Max 50% signal drop @ 100kGy cumulative dose

Collimator : Internal Integrated

Built-in diagnostic : Yes

Interface : Gigabit Ethernet (M12X)

Data output : 16 Bits

External trigger support : Yes

Operational voltage : 24V

Power consumption: 65 W

IP classification : IP67

Operational temperature and humidity : 0°C ~ 40°C, 30% ~ 85%RH, non-condensing

Storage temperature : From -10°C up to 60°C

Compliances : CE, RoHS, China RoHS, WEEE, EMC: IEC61326-1
