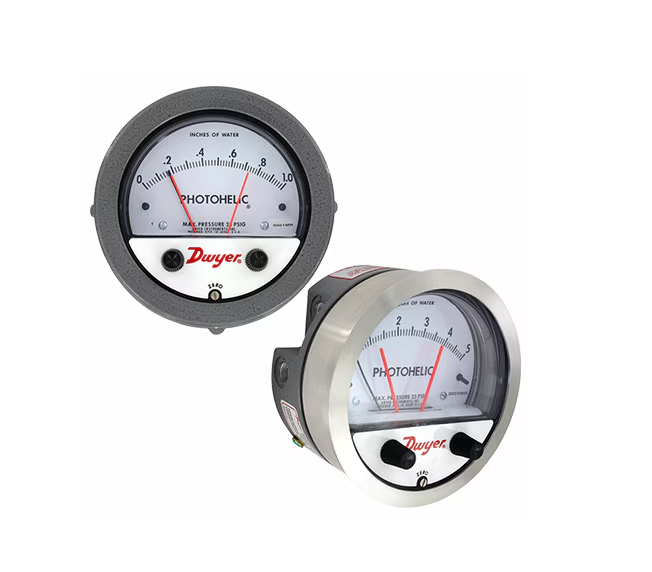

Dwyer 3000MRS-50MM Pressure Switch/Gage (Differential; 1/8" NPT Female; 0 to 50 mmH2O)

Pressure Type: Differential

Pressure Port Size: 1/8" NPT Female

Pressure Range: 0 to 50 mmH2O

Accuracy Class: > 0.25%

Dial Size: 5"

Alarm Types (DC/AC): SSR

GAGE SPECIFICATIONS

Service: Air and non-combustible, compatible gases.

Wetted Materials: Consult factory.

Accuracy: ±2% of FS (3000-0 ±3% of FS). (3000-00 ±4% of FS).

Pressure Limit: -20˝ Hg to 35 psig (-0.677 bar to 1.72 bar). MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).

Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).

Process Connections: 1/8˝ female NPT (duplicated side and back).

Size: 4˝ (101.6 mm) dial face, 5˝ (127 mm) OD x 3-1/8˝ (79.38 mm); -SS Bezel: 4-3/4˝ (120.7 mm) OD x 2-21/32˝ (67.5 mm).

Weight: 1.8 lb (816 g).

Switch Type: Each set point has a solid state relay.

Switching Voltage: 20 to 280 VAC (47 to 63 Hz).

Switching Current: 1.0 A (AC) max., 0.01 mA (AC) min., (2) SPST NO.

Electrical Connections: 18˝ (46 cm) cable assembly with 6 conductors, optional lengths to 100´ (30.5 m).

Power Requirements: 24 VDC, regulated ±10%.

Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.

Set Point: Adjustment Adjustable knobs on face.

Compliance: CE.

See more detail information in the Datasheet
