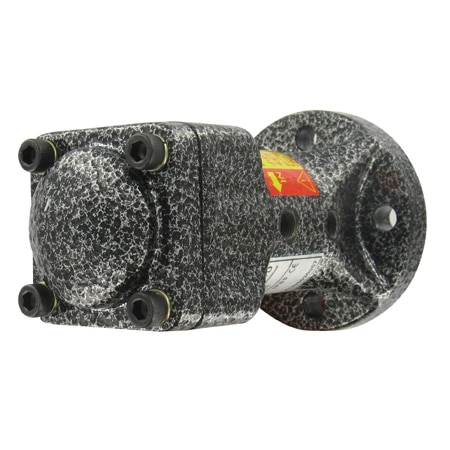

Dwyer APV-I1 Quiet Air-Cushioned Piston Vibrators for Material Flow Control (3996 lbF, 8.8 CFM)
Manufacturer: Dwyer Model: APV-I1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Weight: 2.2 lb
Frequency: 3571 VPM
Materials: Aluminum
Force Note: 1818 lbf @29 psi, 3044 lbf @58 psi, 3996 lbf @87 psi
Air Connection: 1/4" BSPT Female with 1/4" OD Push to Connect Adapter
Frequency Note: 1973 VPM @29 psi, 2885 VPM @58 psi, 3571 VPM @87 psi,
Air Consumption: 8.8 CFM
Noise Level Range: 80 to 115 dBA
Max Vibrating Force: 3996 lbF
Supply Pressure, Max: 87 psi
Process Temperature, Max: 212 °F
