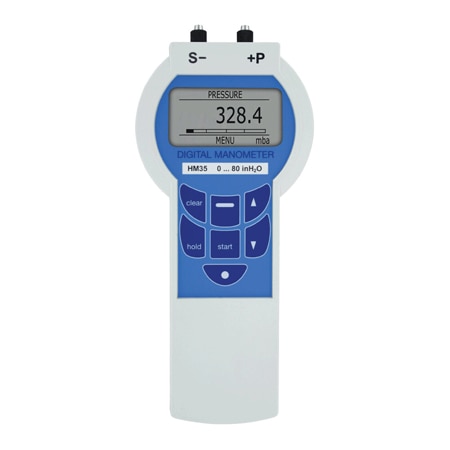

Dwyer HM3531DLL310 Digital Pressure Manometer, 0.05% Accuracy, Data Logging, PC Transfer (± 0.2 % FS, 145 psi, NPT Male and Female, 1/8 in)
Manufacturer: Dwyer Model: HM3531DLL310 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Memory: 10,742 readings. Recording intervals adjustable from 1 s to 24 hrs or manual
Weight: 10.5 oz
Accuracy: ± 0.2 % FS
Display Note: Graphical Backlit LCD. 128 x 64 points
Display Type: Backlit LCD
Pressure Type: N/A
Pressure, Max: 145 psi
Pressure, Min: 0 inH₂O
Measurement Type: Pressure
Enclosure Ratings: IP54, NEMA Type 3
Materials, Wetted: Stainless Steel
Power Consumption: 25 mA
Relative Humidity: Maximum 95% RH non-condensing
Supply Power Note: (3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power
Supply Power Type: Battery
Media Compatibility: Air, Argon, Compatible Gases, Nitrogen
Battery Size and Type: Alkaline AA
Process Connection Size: 1/8 in
Process Connection Type: NPT Male and Female
Storage Temperature, Max: 140 °F
Storage Temperature, Min: -4 °F
Operating Temperature, Max: 122 °F
Operating Temperature, Min: 32 °F
