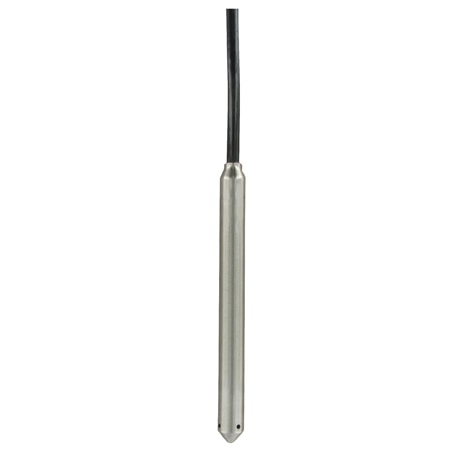

Dwyer MBLT-2SB-IVPF-100-120 Mini Submersible Level Transmitter, 0.63 in, ± 0.10% Acc, 316 SS (43.31 psi)

Weight: 4.68 lb

Accuracy: ± 0.1 %

Mounting: Suspended Below Point Being Monitored

Compliance: CE

Protection: Surge/Lightning Protected Per EN61000-4-5, Class 5

Cable Length: 120 ft

Output Detail: 4 to 20 mA DC, 2-wire

Output Signal: Current

Pressure, Max: 43.31 psi

Response Time: < 50 ms

Proof Pressure: 2x Full Scale

Supply Current: 5 mA

Supply Voltage: 10 to 33 Vdc

Thermal Effect: ± 0.30% FS TEB

Electrical Output: 4 to 20 mA

Materials, Wetted: Fluoroelastomer, Polyether, Polyolefin, Polyurethane, Stainless Steel

Supply Power Type: DC

Media Compatibility: Consult Factory

Electrical Connection: Pigtail Leads

Voltage Output Impedance: 10 Ω + 4.4 Ω / 100' cable

Operating Temperature, Max: 176 °F

Operating Temperature, Min: -4 °F

Compensated Temperature, Max: 60 °C

Compensated Temperature, Min: 0 °C

Material Construction Option: Polyether Polyurethane cable jacket

material-construction-option: Polyether Polyurethane cable jacket
