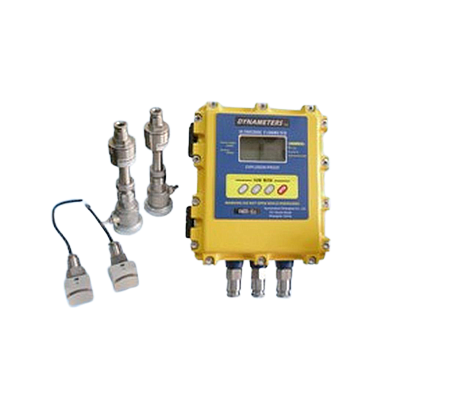

Dynaflox DMTF-Ex Explosion-proof Doppler Ultrasonic Flow Meter

  • Manufacturer: Dynaflox
    Model: DMDF-Ex Series
    • Request a Quotation Request a Quotation
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Accuracy: 0.5%~2.0 % F.S
Flow velocity range: 0.05 m/s~12m/s
Transmitter
Enclosure: NEMA4 x [IP65], cast aluminum
Dimension: 310Lx226Wx127H mm
Power supply: 24 VDC+-5%, 2.5 VA max
Display: 2x8 LCD
Output: 4-20mA
Temp.: -40 + 70 C

Transducer
Measuring range: 0.05 m/s ~ 12m/s
Type: Insertion and clamp-on
Liquid temp.: Std: -40+121C. Opt: -40+250 C -40~150 for insertion )
Cable length: std : 6m . Opt: 300m
Housing material:
Clamp-on: Aluminum
Insertion : Stainless steel
Protection class:
Clamp-on: IP65
Insertion : Std: IP65. Opt: IP68

Chi tiết



catalog

Features



1. The system can be field configured to pipe sizes ranging from 40 to 4000mm.

2. For dirty liquids, a certain amount of air bubbles or suspended solids contain

3. Excellent low flow rate measurement ability, low to 0.05 m/s

4. A wide range of flow measurement, high flow rate can reach 12m/s

5. Automatically signal gain adjustment

6. Do not need to shut down the pipe flow when installing the transducers.

7. User-friendly configurations

8. 4-20mA, totalizer pulse and relay alarm output

9. Accuracy: 2.0% Calibrated span





Approvals:2G, ExdBT6, LCIE 09 ATEX 3088



Solutions:

For petrochemical plant and oil field, oily wastewater discharge, wastewater,

sewage, oil drilling slurry, or all explosion-proof occasion of flow monitoring and measurement.



When installing insertion transducer, Hot-tapped installation and demounted online,

do not need to shut down the pipe flow when install the transducers.
                    Doppler Ultrasonic Flow Meter
When installing insertion transducer, the pipe can’t be welded directly, such as cement pipe,

ductile iron or other unweldable material, please notify manufacturer for extended transducers

(wall thickness of pipe can be up to 110mm). In this case, it also need to install a weldable

(usually carbon steel) hoop shown as below.
           Doppler Ultrasonic Flow Meter

Standard temperature and high temperature Clamp-on Explosion-proof transducers are optional.


Technical Parameters
    Doppler Ultrasonic Flow Meter
