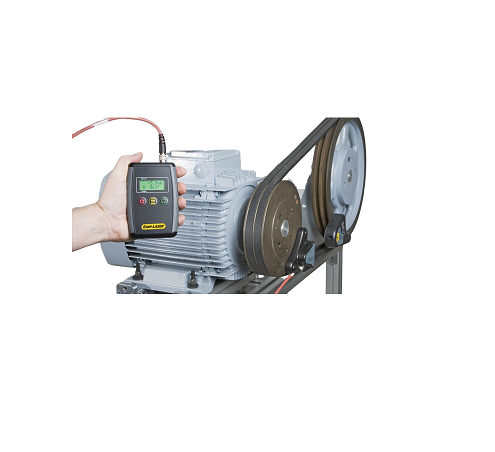

EASYLASER D160 pulley alignment laser

- Laser transmitter
+ Sheave diameters: Ø 60 mm and upwards
+ Laser class : 2
+ Laser output power: < 1 mW
+ Laser wavelength: 635–670 nm
+ Beam angle: 60°
+ Accuracy:Laser plane – Reference area:
           Parallelism: < 0.05°, Offset: < 0.2 mm
+ Type of battery: R6 (AA) 1,5 V
+ Operating time: 8 hours continuously
+ Material: ABS plastic/Hard anodised aluminium
+ Dimensions: WxHxD: 145x86x30 mm
+ Weight: 270 g
- Detector unit
+ Measurement distance: Up to 3 m between transmitter and detector
+ Measurement range: Axial offset: ± 3 mm. Angular value: ±8°
+ Material : ABS plastic/Anodised aluminium
+ Dimensions: WxHxD: 95x95x36 mm
+ Weight: 170 g
- Display unit
+ Display: 2 row backlit LCD
+ Displayed resolution: Axial offset: 0.1 mm. Angular value: 0.1°
+ Type of battery: 1xLR61  9 V
+ Operating time: 24 hours continuously
+ Material: ABS plastic
+ Dimensions: WxHxD: 78x120x23 mm
+ Weight: 170 g
- Cable
+ Length: 2 m
A COMPLETE SYSTEM CONTAINS:
1 Laser transmitter
1 Detector unit
1 Display unit
2 Targets
1 Cable 2 m
1 Manual
1 Carrying case
